Product Summary
The AD8063ART-REEL is a rail-to-rail output voltage feedback amplifier offering ease of use and low cost. The device has bandwidth and slew rate typically found in current feed-back amplifiers. All have a wide input common-mode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.7 V. The applications of the AD8063ART-REEL are (1)Imaging; (2)Photodiode Preamp; (3)Professional Video and Cameras; (4)Hand Sets; (5)DVD/CD; (6)Base Stations; (7)Filters; (8)A-to-D Driver.
Parametrics
AD8063ART-REEL absolute maximum ratings: (1)Supply Voltage: 8 V; (2)Internal Power Dissipation: 1.3 W; (3)Input Voltage (Common-Mode): (–VS – 0.2 V) to (+VS – 1.8 V); (4)Differential Input Voltage: ±VS; (5)Output Short Circuit Duration: Observe Power Derating Curves; (6)Storage Temperature Range: –65 to +125℃; (7)Operating Temperature Range: –40 to +85℃; (8)Lead Temperature Range (Soldering 10 sec): 300℃.
Features
AD8063ART-REEL features: (1)Low Cost; (2)Single with Disable; (3)Rail-to-Rail Output Swing; (4)6 mV VOS; (5)High Speed; (6)Operates on 2.7 V to 8 V Supplies; (7)Excellent Video Specs; (8)Low Power.

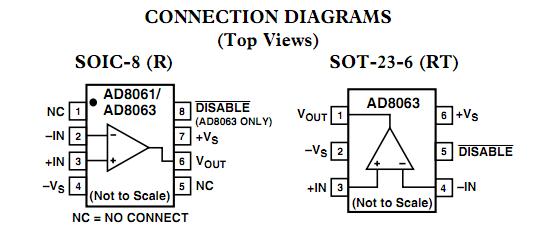

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8063ART-REEL |
Analog Devices Inc |
IC AMP R-R VFB W/DISABLE SOT-23 |
Data Sheet |
Negotiable |
|
||||||
 |
AD8063ART-REEL7 |
|
IC OPAMP VF R-R LP 50MA SOT23-6 |
Data Sheet |
|
|
||||||
