ADM809MARTZ-REEL7

ADM809MARTZ-REEL7, supervisory circuit, SC-70, 5.5 V, 60 uA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~1.00

PartNumber:: ADM809MARTZ-REEL7

Brand:: Analog Devices - ADI | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jolin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-01

From Other Seller

Part Number:ADM809MARTZ-REEL7
US $0.05 - 1.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

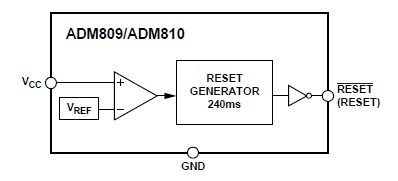

The ADM809MARTZ-REEL7 supervisory circuit monitors the power supply voltage in microprocessor systems. The device provides a reset output during power-up, power-down, and brownout conditions. On power-up, an internal timer holds reset asserted for 240 ms. This holds the microprocessor in a reset state until conditions have stabilized. The reset output remains operational with VCC as low as 1 V. The ADM809RAKSZ-REEL7 provides an active low reset signal (RESET). The device has push-pull outputs. The ADM809MARTZ-REEL7 is ideal for: (1)Microprocessor systems; (2)Computers; (3)Controllers; (4)Intelligent instruments; (5)Automotive systems.

Parametrics

ADM809MARTZ-REEL7 absolute maximum ratings: (1)VCC: -0.3 V to +6 V; (2)RESET, RESET: -0.3 V to VCC + 0.5 V; (3)Input Current: VCC: 20 mA; (4)Output Current: RESET, RESET (Push-Pull): 20 mA; (5)RESET (Open Drain): -0.3 V to +6.0 V; (6)Rate of Rise, VCC: 100 V/μs; (7)Lead Temperature (Soldering, 10 sec): 300℃; (8)Vapor Phase (60 sec): 215℃; (9)Infrared (15 sec): 220℃; (10)Storage Temperature Range: -65℃ to +150℃.

Features

ADM809MARTZ-REEL7 features: (1)Specified over temperature Low power consumption: 17 μA Precision voltage monitor: 2.5 V, 3 V, 3.3 V, 5 V options; (2)Reset assertion down to 1 V VCC; (3)140 ms minimum power-on reset; (4)SC70 and SOT-23 packages.
