Product Summary

The AS182-73 is an IC FET SPDT switch in a low cost SOT-6 plastic package. The AS182-73 features low insertion loss and positive voltage operation with very low DC power consumption.This switch is suitable for handset applications.

Parametrics

AS182-73 absolute maximum ratings: (1)RF Input Power: 6 W > 500 MHz 0/+7 V Control; (2)Control Voltage: -0.2 V, +8 V; (3)Operating Temperature: -40 to +85℃; (4)Storage Temperature: -65 to +150℃; (5)θJC: 25℃/W.

Features

AS182-73 features: (1)P1 dB +30 dBm Typical @ +3 V; (2)IP3 43 dBm Typical @ +3 V; (3)Low Insertion Loss (0.3 dB @ 0.9 GHz); (4)Low DC Power Consumption; (5)Ultra Miniature Low Cost SOT-6 Plastic Package.

Diagrams

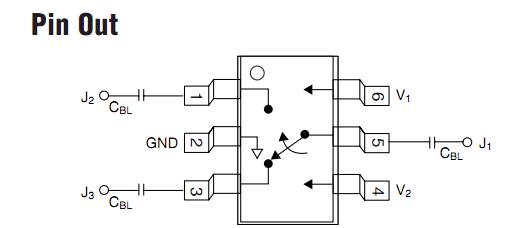

AS182-73 block diagram
