Product Summary

The BD6550G-TR is a constant voltage and constant current controller for battery chargers and adaptors.

Parametrics

BD6550G-TR absolute maximum ratings: (1)power supply voltage, VMAX: -0.3 to 14V; (2)ICT pin maximum voltage, VICTMAX: -0.3 to VCC; (3)power dissipation, Pd: 675mW; (4)operating temperature range, Topr: 0 to 85℃; (5)storage temperature range, Tstg: -55 to 150℃.

Features

BD6550G-TR features: (1)constant current and constant voltage control; (2)high accuracy reference voltage: 1.21V±1%; (3)an accuracy for current-detecting votlage: ±2%.

Diagrams

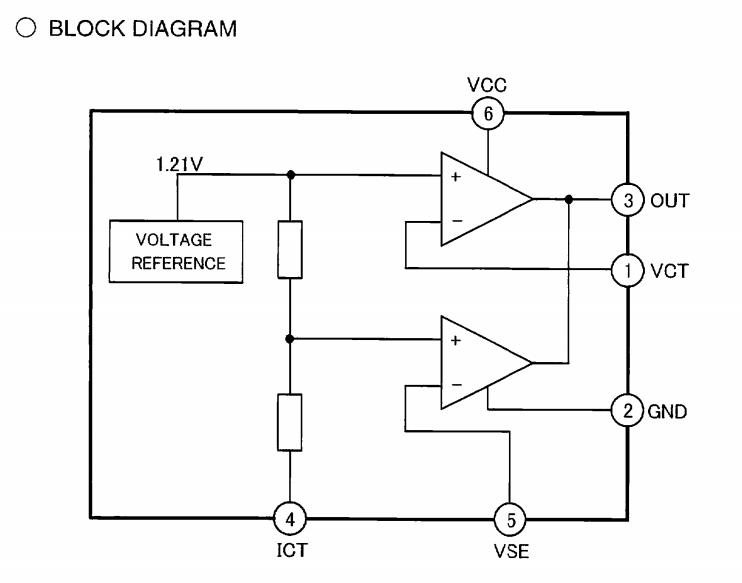

BD6550G-TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

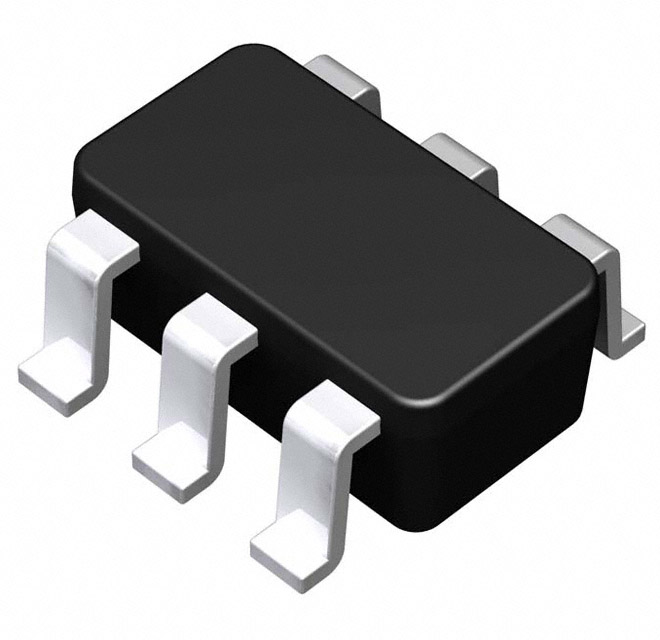

BD6550G-TR
BD6550G-TR

IC POWER MANAGEMENT 2A SSOP6
Data Sheet
0-3000: $0.20
