Product Summary

The EKMM221VSN561MP45S belongs to KMM series which is a kind of large capacitance aluminum electrolytic capacitor.

Parametrics

EKMM221VSN561MP45S specifications: (1)Temperature Range: -25 to +105℃; (2)Rated Voltage Range: 160 to 450 Vdc , 120 Hz; (3)Capacitance Tolerance: ±20% (M) at 20℃; (4)Leakage Current:≤ 3√￣CV; (5)Rated ripple current(Arms/105℃,120Hz): 1.70; (6)Cap: 560μF.

Features

EKMM221VSN561MP45S features: (1)Downsize, longer life, and high ripple version of KMH series; (2)Endurance with ripple current: 105℃, 2000 to 3000 hours; (3)Non solvent-proof type; (4)Pb-free design.

Diagrams

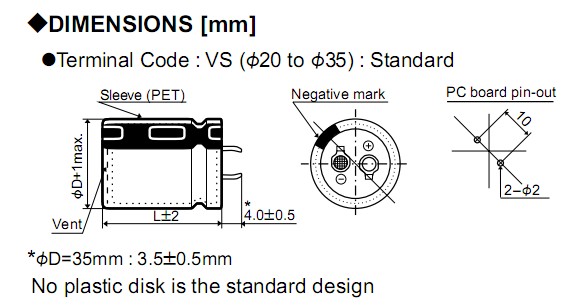

EKMM221VSN561MP45S dimensions
