Product Summary
The FAN4050CIS325 is a precision shunt reference. It is ideal for space- and cost-sensitive applications. The FAN4050CIS325 is available in two output voltages (2.500V and 3.300V) and with a variety of output voltage tolerances (0.1%, 0.2%, and 0.5%). The device also has excellent temperature coefficients, 50ppm/℃. The applications of the FAN4050CIS325 are (1)Portable equipment; (2)Disk drives; (3)Instrumentation; (4)Audio equipment; (5)Data acquisition systems.
Parametrics
FAN4050CIS325 absolute maximum ratings: (1)Continuous cathode current, IK: -30 to +30 mA; (2)Power dissipation: 280 mW; (3)Storage Temperature Range: -65 to 150℃; (4)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
FAN4050CIS325 features: (1)Fixed 2.500V and 3.300V; (2)Tolerances to +0.1% (25℃); (3)Low output noise; (4)Low temperature coefficient, 50ppm/℃ max; (5)Small package: SOT-23; (6)Extended operating current range.

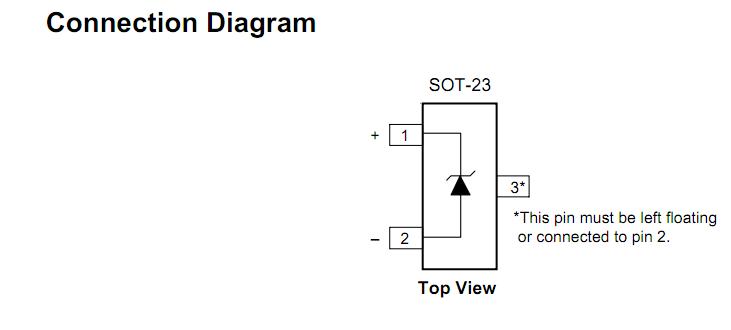

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FAN4050CIS325X |
Fairchild Semiconductor |
Voltage & Current References Shunt Volt Reference Precision Micropower |
Data Sheet |
Negotiable |
|
||||
