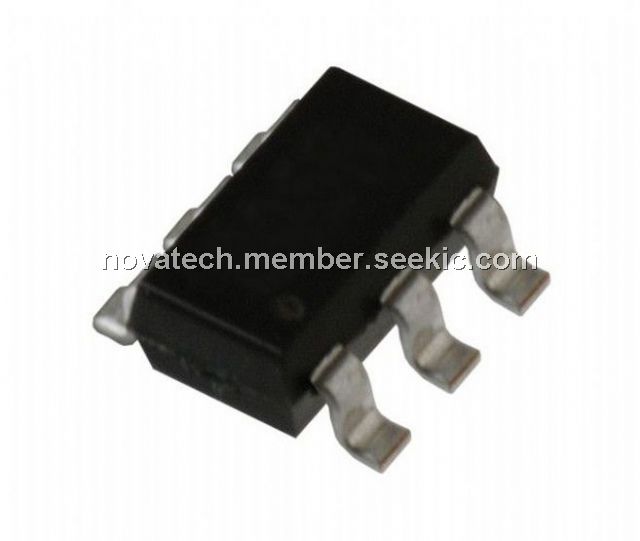

microprocessor, SOT23-5, -0.3V to 6.0V, 20mA, 320mW, LM3722IM5X-2.32

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~1.00

PartNumber:: LM3722IM5X-2.32

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jolin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-23

From Other Seller

Part Number:LM3722IM5X-2.32
US $0.05 - 1.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM3722IM5X-2.32 is a microprocessor supervisory circuits monitor the power supplies in microprocessor and digital systems. The LM3722IM5X-2.32provides a reset to the microprocessor during power-up, power-down, brown-out conditions, and manual reset. The applications of the LM3722IM5X-2.32 are (1)Microprocessor Systems; (2)Computers; (3)Controllers; (4)Intelligent Instruments; (5)Portable/Battery-Powered Equipment.

Parametrics

LM3722IM5X-2.32 absolute maximum ratings: (1)VCC,MR: -0.3V to 6.0V; (2)RESET, RESET: -0.3V to (VCC+ 0.3V); (3)Input Current, VCC Pin: 20mA; (4)Output Current, RESET, RESET Pin: 20mA; (5)ESD Rating: 2kV; (6)Continuous Power Dissipation: 320mW; (7)Operating Temperature Range: -40 to +85℃; (8)Maximum Junction Temperature: 125℃; (9)Storage Temperature Range: -65 to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

LM3722IM5X-2.32 features: (1)Precise monitoring of 2.5V, 3.3V, and 5V supply voltages; (2)Fully specified over temperature. Industrial: -40 to +85℃; Extended: -40 to +125℃; (3)100 ms minimum Power-On Reset pulse width, 190 ms typical; (4)Guaranteed RESET Output valid for VCC ≥ 1V; (5)Low Supply Current, 6μA typical; (6)Power supply transient immunity; (7)Compatible with MAX811/812 applications.
