Product Summary
The 74HC374 is a high-speed Si-gate CMOS device. It is pin compatible with low power Schottky TTL (LSTTL). The device is specified in compliance with JEDEC standard no. 7A. The 74HC374 is an octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A clock (CP) and an output enable (OE) input are common to all flip-flops. The 74HC374 will store the state of their individual D-inputs that meet the set-up and hold times requirements on the LOW-to-HIGH CP transition. When OE is LOW, the contents of the 74HC374 are available at the outputs. When OE is HIGH, the outputs go to the high impedance OFF-state. Operation of the OE input does not affect the state of the flip-flops.
Parametrics
74HC374 quick reference data:(1)propagation delay CP to Qn:15ns; (2)maximum clock frequency: 77MHz; (3)input capacitance: 3.5pF; (4)power dissipation capacitance per flip-flop: 17pF.
Features
74HC374 features: (1)3-state non-inverting outputs for bus oriented applications; (2)8-bit positive, edge-triggered register; (3)Common 3-state output enable input; (4)Independent register and 3-state buffer operation; (5)Output capability: bus driver; (6)ICC category: MSI.

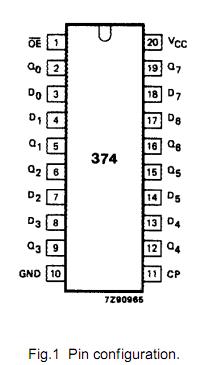

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

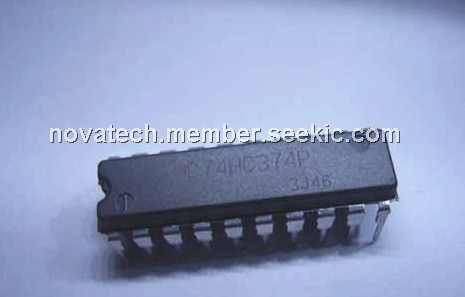

![]() 74HC374 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 74HC374D |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D 3-S |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 74HC374D,652 |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D 3-S |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 74HC374D,653 |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D F/F 3STATE |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 74HC374DB |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D 3-S |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 74HC374DB,112 |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D 3-S |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 74HC374DB,118 |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D 3-S |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 74HC374DB-T |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D 3-S |
![]() Data Sheet |
![]() Negotiable |
|
