Product Summary
The MC3334 is designed to use the signal from a reluctor type ignition pickup to produce a well controlled output from a power Darlington output transistor. The MC3334 high energy ignition circuit was designed to serve aftermarket Delco five–terminal ignition applications. This device, driving a high voltage Darlington transistor, offers an ignition system which optimizes spark energy at minimum power dissipation. The IC is pinned–out to permit thick film or printed circuit module design without any crossovers.
Parametrics
Absolute maximum ratings: (1)Power Supply Voltage–Steady State, Vbat: 24V; (2)Transient 300 ms or less, Vbat: 90V; (3)Output Sink Current–Steady State, IO(Sink): 300mA; (4)Transient 300 ms or less, IO(Sink): 1.0A; (5)Junction Temperature TJ(max): 150 ℃; (6)Operating Temperature Range, TA: –40 to +125 ℃; (7)Storage Temperature Range, Tstg: –65 to +150 ℃; (8)Power Dissipation, Plastic Package, Case 626, PD: 1.25W; (9)Power Dissipation, Plastic Package, Derate above 25℃, PD: 10mW/℃.
Features
Features: (1)Very Low Peripheral Component Count; (2)No Critical System Resistors; (3)Wide Supply Voltage Operating Range (4.0 V to 24 V); (4)Overvoltage Shutdown (30 V); (5)Dwell Automatically Adjusts to Produce Optimum Stored Energy without Waste; (6)Externally Adjustable Peak Current; (7)Available in Chip and Flip–Chip Form; (8)Transient Protected Inputs and Outputs.

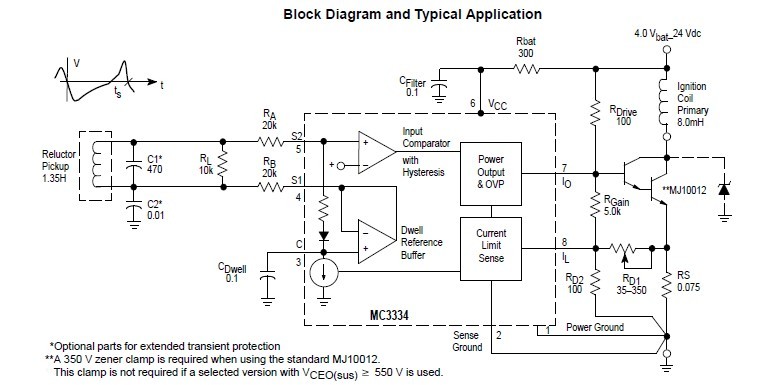

Diagrams
