Product Summary

The VJ2220A103JXCAT is a surface mount multilayer ceramic chip capacitor for commercial applications.

Parametrics

VJ2220A103JXCAT absolute maximum ratings: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Capacitance Range: 1.0 pF to 0.056 μF; (3)Voltage Rating: 10 Vdc to 1000 Vdc; (4)Temperature Coefficient of Capacitance (TCC): 0 ± 30 ppm/℃ from - 55 ℃ to + 125 ℃; (5)Dissipation Factor (DF): 0.1 % maximum at 1.0 Vrms and 1 kHz for values > 1000 pF; (6)Aging Rate: 0 % maximum per decade.

Features

VJ2220A103JXCAT features: (1)C0G is an ultra-stable dielectric offering a Temperature Coefficient of Capacitance (TCC) of 0 30 ppm/℃; (2)Low Dissipation Factor (DF); (3)Ideal for critical timing and tuning applications; (4)Ideal for snubber and surge suppression applications; (5)Protective surface coating of high voltage capacitors maybe required to prevent surface arcing.; (6)Surface mount, precious metal technology, wet build process.

Diagrams

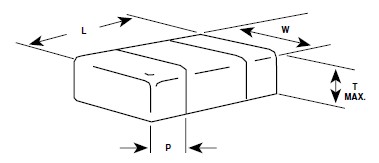

VJ2220A103JXCAT dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VJ2220A103JXCAT
VJ2220A103JXCAT

CAP CER 10000PF 200V 5% NP0 2220
Data Sheet
0-1: $0.90
1-10: $0.74
10-100: $0.52
100-250: $0.43
250-500: $0.39
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VJ2220
VJ2220
Other

Data Sheet
Negotiable
VJ2220A102JBAAT4X
VJ2220A102JBAAT4X

CAP CER 1000PF 50V 5% NP0 2225
Data Sheet
0-5000: $0.33
VJ2220A102JBBAT4X
VJ2220A102JBBAT4X

CAP CER 1000PF 100V 5% NP0 2225
Data Sheet
0-5000: $0.33
VJ2220A102JBCAT4X
VJ2220A102JBCAT4X

CAP CER 1000PF 200V 5% NP0 2225
Data Sheet
0-5000: $0.33
VJ2220A102JBEAT4X
VJ2220A102JBEAT4X

CAP CER 1000PF 500V 5% NP0 2225
Data Sheet
0-5000: $0.36
VJ2220A102JBGAT4X
VJ2220A102JBGAT4X

CAP CER 1000PF 1KV 5% NP0 2220
Data Sheet
0-5000: $0.33
