Product Summary
The VJ1812A101JXEAT is a surface mount multilayer ceramic chip capacitor solutions for boardflex sensitive applications. The applications of the VJ1812A101JXEAT are: Demanding boardflex applications; Input filter capacitors; Output filter capacitors; Snubber capacitors reduce MOSFET voltage spikes; High frequency filtering for switching power supplies.
Parametrics
VJ1812A101JXEAT absolute maximum ratings: (1)Operating Temperature: - 55℃ to + 125℃; (2)Capacitance Range: 10 pF to 47 nF; (3)Voltage Range: 50 VDC to 3000 VDC; (4)Temperature Coefficient of Capacitance (TCC): 0 ppm/℃ 30 ppm/℃ from - 55℃ to + 125℃; (5)Dissipation Factor (DF): 0.1 % maximum at 1.0 VRMS and 1 MHz for values ≤ 1000 pF 0.1 % maximum at 1.0 VRMS and 1 kHz for values > 1000 pF; (6)Insulating Resistance: At + 25℃ 100 000 ΩF min. or 1000 ΩF whichever is less. At + 125℃ 10 000 ΩF min. or 100 ΩF whichever is less; (7)Aging Rate: 0 % maximum per decade.
Features
VJ1812A101JXEAT features: (1)Open Mode Design (OMD) reduces risk of shorts or leakage in board flex applications; (2)Excellent reliability and thermal shock performance; (3)Efficient low-power consumption, ripple current capable to 1.2 ARMS at 100 kHz; (4)High voltage breakdown compared to standard design; (5)100 % voltage conditioning available up to 630 VDC rating (process code H Contact mlcc@vishay.com for higher voltages.; (6)Polymer termination available for intensive board flex requirements; (7)Wet build process; (8)Reliable Noble Metal Electrode (NME) system; (9)Compliant to RoHS Directive 2002/95/EC; (10)Halogen-free according to IEC 61249-2-21 definition.

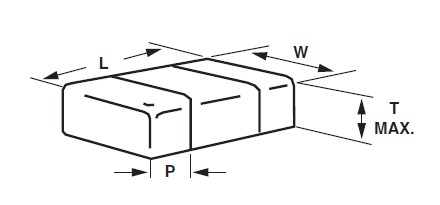

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() VJ1812A101JXEAT |
![]() |
![]() CAP CER 100PF 500V 5% NP0 1812 |
![]() Data Sheet |
![]()
|
|
||||||||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
![]() |
![]() VJ1808 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
![]() |
![]() VJ1808A100JBAAT4X |
![]() |
![]() CAP CER 10PF 50V 5% NP0 1808 |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() VJ1808A100JBBAT4X |
![]() |
![]() CAP CER 10PF 100V 5% NP0 1808 |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() VJ1808A100JBCAT4X |
![]() |
![]() CAP CER 10PF 200V 5% NP0 1808 |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() VJ1808A100JBEAT4X |
![]() |
![]() CAP CER 10PF 500V 5% NP0 1808 |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() VJ1808A100JBFAT4X |
![]() |
![]() CAP CER 10PF 2KV 5% NP0 1808 |
![]() Data Sheet |
![]()
|
|
