Product Summary
The PIC16F54-I/P is a low-cost, high-performance, 8-bit, fully static, Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/single-cycle instructions. The device is equipped with special features that reduce system cost and power requirements.
Parametrics
PIC16F54-I/P absolute maximum ratings: (1)Ambient Temperature under bias:-40℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS:0V to +6.5V; (4)Voltage on MCLR with respect to VSS:0V to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.6V to (VDD + 0.6V); (6)Total power dissipation:800 mW; (7)Max. current out of VSS pin:150 mA; (8)Max. current into VDD pin:100 mA; (9)Max. current into an input pin (T0CKI only):±500 μA; (10)Input clamp current, IIK (VI < 0 or VI > VDD):±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD):±20 mA; (12)Max. output current sunk by any I/O pin :25 mA; (13)Max. output current sourced by any I/O pin:25 mA; (14)Max. output current sourced by a single I/O port (PORTA, B or C) :50 mA; (15)Max. output current sunk by a single I/O port (PORTA, B or C):50 mA.
Features
PIC16F54-I/P features: (1)Only 33 single-word instructions to learn; (2)All instructions are single cycle except for program branches which are two-cycle; (3)Two-level deep hardware stack; (4)Direct, Indirect and Relative Addressing modes for data and instructions; (5)Power-on Reset (POR); (6)Device Reset Timer (DRT); (7)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (8)Programmable Code Protection; (9)Power-Saving Sleep mode; (10)8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler.

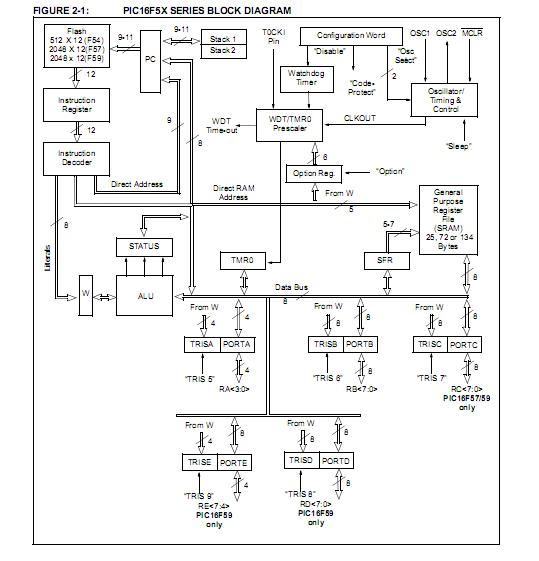

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC16F54-I/P |
Microchip Technology |
8-bit Microcontrollers (MCU) .77KB 25 RAM 12 I/O Ind Temp PDIP18 |
Data Sheet |
|
|
||||||||||||
|
PIC16F54-I/PG |
Microchip Technology |
8-bit Microcontrollers (MCU) .77KB 25 RAM 12 I/O Lead Free Package |
Data Sheet |
