Product Summary

The UCA2V680MHD is a aluminum electrolytic capacitor.

Parametrics

UCA2V680MHD general specifications: (1)Category Temperature Range:–25℃ to +105℃; (2)Rated Voltage Range:160V to 450V; (3)Rated Capacitance Range:6.8μF to 220μF; (4)Capacitance Tolerance:± 20% at 120Hz, 20℃; (5)Leakage Current: After 1 minutes’application of rated voltage, leakage current is not more than 0.04CV+100 (μA).

Features

UCA2V680MHD features: (1)High ripple current and Long Life product withstanding load life of 12000 hours(10000 hours for φD=10) at +105℃; (2)Suited for ballast application.

Diagrams

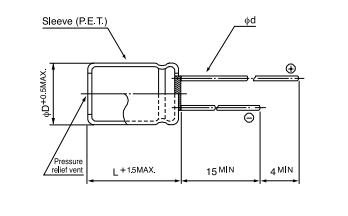

UCA2V680MHD Radial Lead Type

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UCA2V680MHD
UCA2V680MHD

Nichicon

Aluminum Electrolytic Capacitors - Leaded 350volts 68uF 16X31.5 20%

Data Sheet

0-1: $2.41
1-10: $2.21
10-100: $1.55
100-500: $1.52
UCA2V680MHD6
UCA2V680MHD6

Nichicon

Aluminum Electrolytic Capacitors - Leaded 350volts 68uF 18X25 20%

Data Sheet

0-1: $2.41
1-10: $2.21
10-100: $1.55
100-500: $1.52
UCA2V680MHD6TN
UCA2V680MHD6TN


CAP ALUM 68UF 350V 20% RADIAL

Data Sheet

0-1: $1.92
1-10: $1.59
10-25: $1.52
25-50: $1.47
50-100: $1.33
