Product Summary

The UAA1041B is an automotive direction indicator. This device is designed for use in conjunction with a relay in automotive applications. It is also applicable for other warning lamps such as "handbrake ON," etc.

Parametrics

Absolute maximum ratings: (1)Current: Continuous/Pulse* 1: +150/+500 mA; (2)Junction Temperature: 150 ℃; (3)Operating Ambient Temperature Range: –40 to + 100 ℃; (4)Storage Temperature Range: –65 to + 150 ℃; (5)Thermal Resistance, Junction–to–Ambient: 100 ℃/W (Typ).

Features

Features: (1)Defective Lamp Detection; (2)Overvoltage Protection; (3)Short Circuit Detection and Relay Shutdown to Prevent Risk of Fire; (4)Reverse Battery Connection Protection; (5)Integrated Suppression Clamp Diode.

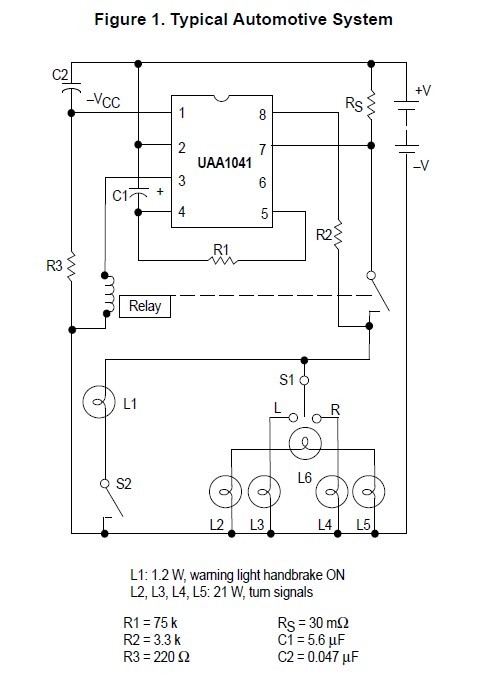

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

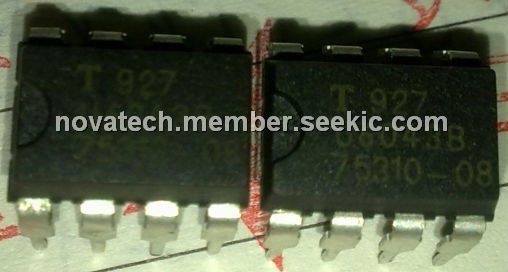

UAA1041B
UAA1041B

Other


Data Sheet

Negotiable
