Product Summary
The U6047B is rear window heating timer. The window heating timers are bipolar integrated circuits. Due to time controlled functions, they reduce the current consumptions of high loads i.e., heating resistors. An ON-relay can be switched off after a preset delay time. The relay time can be interrupted manually whereas a retrigger function is not provided.
Parametrics
Absolute maximum ratings: (1)Operating voltage, static, 5 min, VBatt: 24V; (2)Ambient temperature range, Tamb: –40 to +125℃; (3)Storage temperature range, Tstg: –55 to +125℃; (4)Junction temperature, Tj: 150℃.
Features
Features: (1)Delay time range: 3.7 s to 20 h; (2)RC oscillator determines switching characteristics; (3)Relay driver with Z-diode; (4)Debounced input for toggle switch; (5)Two debounced inputs: ON and OFF; (6)Load dump protection; (7)RF interference protected; (8)Protection according to ISO/TR7637-1 (VDE 0839); (9)U 6046 B: Inputs switched to VBatt; (10)U 6047 B: Inputs switched to ground.

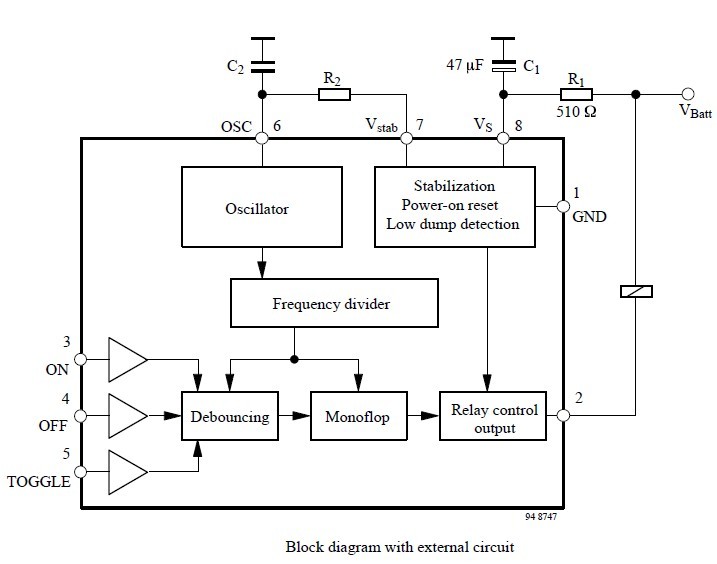

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
U6047B |
Other |
Data Sheet |
Negotiable |
|
||||||
