Product Summary
The bi-polar long-term timer U6046B is designed to automatically limit the operation time of high loads in the harsh automotive enviroment with a preset delay time. With the power-on-reset function the timers guarantee that current consuming devices are not operated unintentionally. The delay time can be interrupted manually, but a retrigger function is not provided.
Parametrics
Absolute maximum ratings: (1)Operating voltage, static, 5 min, VBatt: 24 V; (2)Ambient temperature range, Tamb: -40 to +125 ℃; (3)Storage temperature range, Tstg: -55 to +125 ℃; (4)Junction temperature, Tj: 150 ℃.
Features
Features: (1)Delay Time Range: 3.7 s to 20 h; (2)RC Oscillator Determines Timing Characteristics; (3)Relay Driver with Z-diode; (4)Debounced Input for Toggle Switch; (5)Two Debounced Inputs: ON and OFF; (6)Load-dump Protection; (7)RF Interference Protected; (8)Protection According to ISO/TR7637-1 (VDE 0839); (9)Inputs Switched to VBatt.

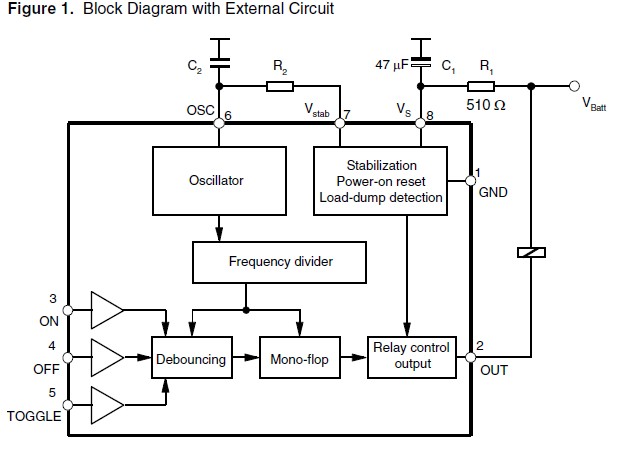

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
U6046B |
Other |
Data Sheet |
Negotiable |
|
||||||
U6046B-M |
IC OSC TIMER CTRL ADJ FREQ 8DIP |
Data Sheet |
Negotiable |
|
||||||
U6046B-MFPG3Y |
Atmel |
Timers & Support Products TIMER |
Data Sheet |
Negotiable |
|
|||||
U6046B-MFPY |
Atmel |
Timers & Support Products TIMER |
Data Sheet |
Negotiable |
|
|||||
U6046B-MFP |
IC OSC TIMER CTRL ADJ FREQ 8SOIC |
Data Sheet |
Negotiable |
|
||||||
U6046B-MFPG3 |
IC OSC TIMER CTRL ADJ FREQ 8SOIC |
Data Sheet |
Negotiable |
|
||||||
U6046B-MY |
Atmel |
Timers & Support Products Delay Timer |
Data Sheet |
Negotiable |
|
