Product Summary

The T491D226M035AT is a standard MnO2 Tantalum surface mount capacitor. The KEMET T491D226M035AT, designed specifically for todays highly automated surface mount processes and equipment, is the leading choice for surface mount designs. It combines KEMETs proven solid tantalum technology, acclaimed and respected throughout the world, with the latest in materials, processes and automation, resulting in unsurpassed total performance and value. This T491D226M035AT meets or exceeds the requirements of EIA standard 535BAAC. The physical outline and dimensions of this series conform to this global standard.

Parametrics

T491D226M035AT performance characteristics: (1)Operating Temperature: -55℃ to 125℃; (2)Rated Capacitance Range: 0.1μF–1000μF @ 120 Hz/25℃; (3)Capacitance Tolerance: K Tolerance (10%), M Tolerance (20%); (4)Rated Voltage Range: 2.5V–50V; (5)Leakage Current: ≤ 0.01CV (μA) at Rated Voltage after 5 minutes.

Features

T491D226M035AT features: (1)Meets or Exceeds EIA Standard 535BAAC; (2)Taped and Reeled per EIA 481-D; (3)Symmetrical, Compliant Terminations; (4)Optical Gold-Plated Terminations; (5)Laser-marked Case; (6)100% Surge current test on C, D, E, U, V, X sizes; (7)Halogen Free Epoxy; (8)Capacitance 0.1μF to 1000μF; (9)Tolerance ±10%, ±20%; (10)Voltage 2.5-50 VDC; (11)Extended Range Values; (12)Low Profile Case Sizes; (13)RoHS Compliance & Lead Free Terminations; (14)Operating Temperature: -55℃ to +125℃.

Diagrams

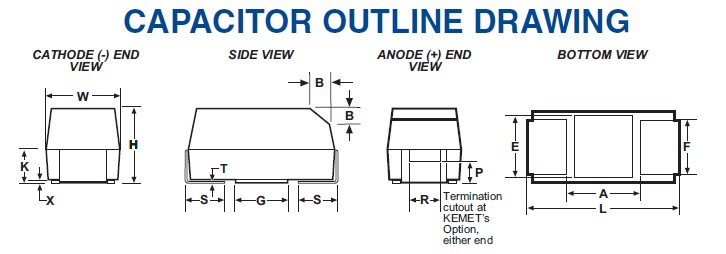

T491D226M035AT capacitor outline drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T491D226M035AT
T491D226M035AT

Kemet

Tantalum Capacitors - Solid SMD 22uF 35V 20% D

Data Sheet

0-1: $1.01
1-10: $0.82
10-100: $0.58
100-500: $0.35
