Product Summary
The AAT3526ICX-3.08-200-T1 is a MicroPower Supervisory Circuit with Manual Reset. It is ideal for monitoring voltage supplies in portable systems, where extended battery life is critical. The applications of the AAT3526ICX-3.08-200-T1 include cell phones, embedded systems, intelligent instruments, notebook computers, portable electronics.
Parametrics
AAT3526ICX-3.08-200-T1 absolute maximum ratings:(1)VCC, VCC to GND: -0.3 to 5.5V; (2)VMR, MR to GND: -0.3 to VCC+0.3V; (3)VRESET, RESET to GND: -0.3 TO 5.5V; (4)IVCC,IMR, maximum continuous input current:20mA; (5)IRESET, RESET/RESET current: 20mA; (6)dVCC/dt, rate of rise fo V: 100V/μs; (7)TJ, Operating junction temperature range: -40 to 150℃; (8)TLEAD, maximum soldering temperature for 10s: 300℃.
Features
AAT3526ICX-3.08-200-T1 features: (1)Input voltage range: 1.2V to 5.5V; (2)Operation down to 1.2V; (3)Extremely low quiescent current less than 2μA; (4)High accuracy detection threshold: ±1.5%; (5)Monitor power supply voltages; (6)Fixed thresholds from 2.2V to 4.6V; (7)Minimum 150ms Reset pulse width with fast delay time＜20μs; (8)Debounced manual reset input; (9)Available output configurations; (10)Temperature range: -40 to +85℃; (11)4-pin SOT143 package; (12)4kV ESD ratings.

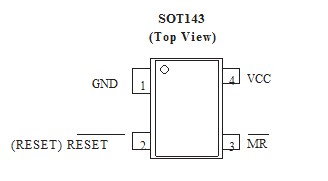

Diagrams
 |
