Product Summary
The VJ1808A221JXGAT is a surface mount multilayer ceramic chip capacitor for commercial applications.
Parametrics
VJ1808A221JXGAT absolute maximum ratings: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Capacitance Range: 1.0 pF to 0.056 μF; (3)Voltage Rating: 10 Vdc to 1000 Vdc; (4)Temperature Coefficient of Capacitance (TCC): 0 ± 30 ppm/℃ from - 55 ℃ to + 125 ℃; (5)Dissipation Factor (DF): 0.1 % maximum at 1.0 Vrms and 1 kHz for values > 1000 pF; (6)Aging Rate: 0 % maximum per decade.
Features
VJ1808A221JXGAT features: (1)C0G is an ultra-stable dielectric offering a Temperature Coefficient of Capacitance (TCC) of 0 ±30 ppm/℃; (2)Low Dissipation Factor (DF); (3)Ideal for critical timing and tuning applications; (4)Ideal for snubber and surge suppression applications; (5)Protective surface coating of high voltage capacitors maybe required to prevent surface arcing; (6)Surface mount, precious metal technology, wet build process.

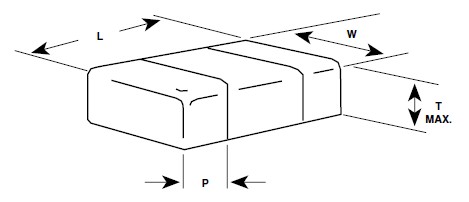

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VJ1808A221JXGAT |
|
CAP CER 220PF 1KV 5% NP0 1808 |
Data Sheet |
Negotiable |
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
VJ1808 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
VJ1808A100JBAAT4X |
|
CAP CER 10PF 50V 5% NP0 1808 |
Data Sheet |
|
|
||||||||
|
VJ1808A100JXHAT4X |
Vishay/Vitramon |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 10PF 3KV 5% |
Data Sheet |
|
|
||||||||
|
VJ1808A100KBAAT4X |
|
CAP CER 10PF 50V 10% NP0 1808 |
Data Sheet |
|
|
||||||||
|
VJ1808A101JXFAT4X |
Vishay/Vitramon |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 100PF 2KV 5% |
Data Sheet |
|
|
||||||||
|
VJ1808A100KBCAT4X |
|
CAP CER 10PF 200V 10% NP0 1808 |
Data Sheet |
|
|
||||||||
