Product Summary
The ADC081S051CIMFX is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC081S051CIMFX is fully specified over a sample rate range of 200 kSPS to 500 kSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. The applications of the ADC081S051CIMFX are n Portable Systems, Remote Data Aquisitions and Instrumentation and Control Systems.
Parametrics
ADC081S051CIMFX absolute maximum ratings: (1)Analog Supply Voltage VA: -0.3V to 6.5V; (2)Voltage on Any Pin to GND: -0.3V to VA +0.3V; (3)Input Current at Any Pin: ±10 mA; (4)Package Input Current: ±20 mA; (5)Junction Temperature: +150℃; (6)Storage Temperature: -65 to +150℃.
Features
ADC081S051CIMFX features: (1)Specified over a range of sample rates; (2)6-lead LLP package; (3)Variable power management; (4)Single power supply with 2.7V - 5.25V range; (5)SPI/QSPI/MICROWIRE/DSP compatible.

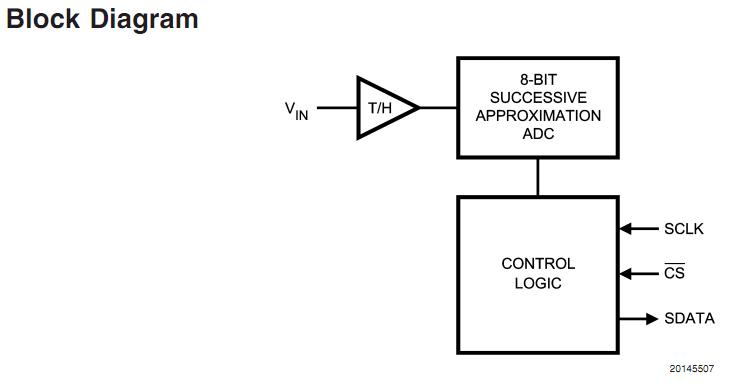

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADC081S051CIMFX |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||
 |
ADC081S051CIMFX/NOPB |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||
