Product Summary
The AS174-73 is an IC FET SPDT switch in a low cost SOT-6 plastic package. The AS174-73 features low insertion loss and positive voltage operation with very low DC power consumption. This general purpose switch can be used in a variety of telecommunications applications.
Parametrics
AS174-73 absolute maximum ratings: (1)RF Input Power: 6 W > 500 MHz 0/+7 V Control; (2)Control Voltage: -0.2 V, +8 V; (3)Operating Temperature: -40°C to +85°C; (4)Storage Temperature: -65°C to +150°C; (5)ΘJC: 25°C/W.
Features
AS174-73 features: (1)P1 dB +30 dBm Typical @ +3 V ; (2)IP3 43 dBm Typical @ +3 V; (3)Low Insertion Loss (0.3 dB @ 0.9 GHz); (4)Low DC Power Consumption; (5)Ultra Miniature Low Cost SOT-6 Plastic Package; (6)PHEMT Process.

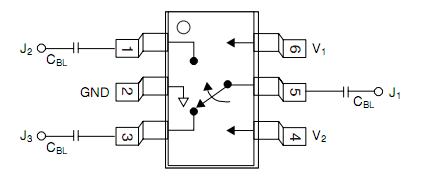

Diagrams
