Product Summary

The BFR193W is an NPN Silicon RF Transistor.

Parametrics

BFR193W absolute maximum ratings: (1)Collector-emitter voltage VCEO 12 V; (2)Collector-emitter voltage VCES 20V; (3)Collector-base voltage VCBO 20V; (4)Emitter-base voltage VEBO 2V; (5)Collector current IC 80 mA; (6)Base current IB 10mA; (7)Total power dissipation, Ptot 580 mW; (8)Junction temperature Tj 150℃; (9)Ambient temperature TA -65 to 150℃; (10)Storage temperature Tstg -65to 150℃.

Features

BFR193W features: (1)For low noise, high-gain amplifiers up to 2 GHz; (2)For linear broadband amplifiers; (3)fT = 8 GHz F = 1.3 dB at 900 MHz.

Diagrams

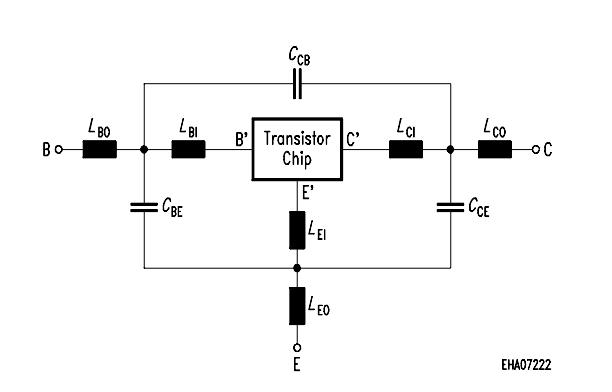

BFR193W block diagram
