Product Summary
The ESDA6V1-5SC6 is a 5-bit wide monolithic suppressor which is designed to protect against ESD components connected to data and transmission lines. The ESDA6V1-5SC6 is suitable for Where transient overvoltage protection in ESD sensitive equipment is required, such as : (1)Computers; (2)Printers; (3)Communication systems; (4)Cellular phone handsets and accessories; (5)Other telephone sets; (6)Set top boxes.
Parametrics
ESDA6V1-5SC6 absolute maximum ratings: (1)PPP Peak pulse power: 100 W; (2)Tj Junction temperature: 150℃; (3)Tstg Storage temperature range: -55 to +150℃; (4)TL Lead solder temperature (10 seconds duration): 260℃; (5)Top Operating temperature range: -40 to +125℃.
Features
ESDA6V1-5SC6 features: (1)5 unidirectional transil functions; (2)breakdown voltage: VBR = 6.1V min; (3)low leakage current: IR max<1 μA.

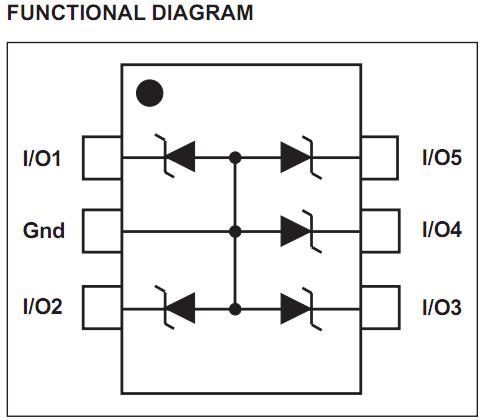

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ESDA6V1-5SC6 |
STMicroelectronics |
TVS Diode Arrays 6.1V 100W Unidirect |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
ESDA12-1K |
STMicroelectronics |
ESD Suppressors EOS ESD Transil 450W 12V, 18V 150pF |
Data Sheet |
|
|
||||||||||||
|
ESDA14V2-1BF3 |
STMicroelectronics |
TVS Diodes - Transient Voltage Suppressors Single Line Bi-Di ESD Transil Array |
Data Sheet |
|
|
||||||||||||
|
ESDA14V2-2BF3 |
STMicroelectronics |
TVS Diode Arrays Dual bidirectional TRANSIL" array |
Data Sheet |
|
|
||||||||||||
|
ESDA14V2-4BF1 |
STMicroelectronics |
TVS Diode Arrays Quad Bidirect Array |
Data Sheet |
Negotiable |
|
||||||||||||
|
ESDA14V2-4BF2 |
STMicroelectronics |
TVS Diode Arrays Quad Bidirect Array |
Data Sheet |
Negotiable |
|
||||||||||||
|
ESDA14V2-4BF3 |
STMicroelectronics |
TVS Diode Arrays Quad BI ESD prote TRANSIL" array |
Data Sheet |
|
|
||||||||||||
