Product Summary

The CC0603JRNPO8BN102 is a surface-mount ceramic multilayer capacitor. The applications of the CC0603JRNPO8BN102 are: Consumer electronics for example. Tuners; Television receivers; All types of cameras; Telecommunications; Data processing. The capacitor CC0603JRNPO8BN102 consists of a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. This structure gives rise to a high capacitance per unit volume.

Parametrics

CC0603JRNPO8BN102 absolute maximum ratings: (1)Capacitance range: 0.22 pF to 33 nF; (2)Capacitance tolerance C < 10 pF ±0.1 pF, ±0.25 pF, ±0.5 pF; (3)Dissipation factor (D.F.): C < 30 pF ≤ 1 / ( 400 + 20C ). C ≥ 30 pF ≤ 0.1 %; (4)Insulation resistance after 1 minute at Ur (DC) Rins ≥ 10 GΩ or Rins × Cr ≥ 500 seconds whichever is less; (5)Maximum capacitance change as a function of temperature; (6)(temperature characteristic/coefficient): ±30 ppm/℃; (7)Operating temperature range: –55 ℃ to +125 ℃.

Features

CC0603JRNPO8BN102 features: (1)Supplied in tape on reel; (2)Nickel-barrier end termination; (3)RoHS compliant; (4)Halogen Free compliant.

Diagrams

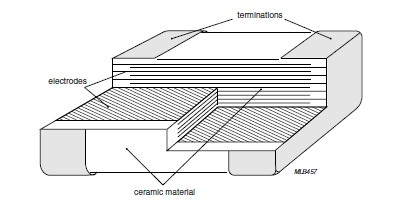

CC0603JRNPO8BN102 package diagram
