PIC16F676-I/P

DIP-14, FLASH-Based, 8-Bit CMOS Microcontrollers, Microchip Technology, -0.3 to +6.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: PIC16F676-I/P

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jolin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-15

From Other Seller

Part Number:PIC16F676-I/P
US $0.01 - 100.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

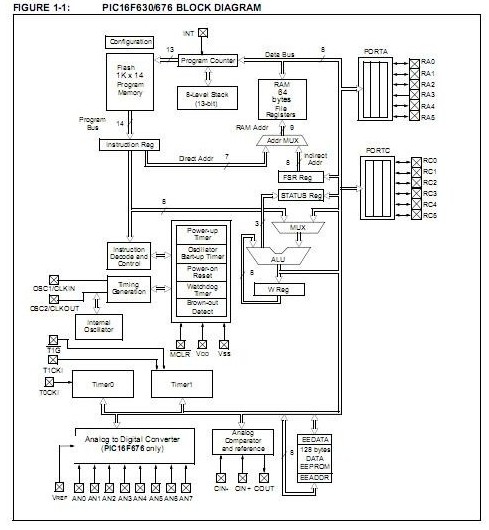

The PIC16F676-I/P is a 14-Pin, Flash-Based 8-Bit CMOS Microcontroller.

Parametrics

PIC16F676-I/P absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (4)Voltage on MCLR and RA4 with respect to VSS :-0.3 to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.3V to VDD+0.3V; (6)Total power dissipation:800 mW; (7)Maximum current out of VSS pin:300 mA; (8)Maximum current into VDD pin:250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD):± 20 mA; (11)Maximum output current sunk by any I/O pin:25 mA; (12)Maximum output current sourced by any I/O pin:25 mA; (13)Maximum current sunk by PORTA and PORTB (Combined):200 mA; (14)Maximum current sourced by PORTA and PORTB (Combined):200 mA.

Features

PIC16F676-I/P features: (1)Interrupt Capability; (2)8-level Deep Hardware Stack; (3)Direct, Indirect, and Relative Addressing modes; (4)Power-Saving Sleep mode; (5)Wide Operating Voltage Range – 2.0V to 5.5V; (6)Industrial and Extended Temperature Range; (7)Low-Power Power-on Reset (POR); (8)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (9)Brown-out Detect (BOD); (10)Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation; (11)Multiplexed MCLR/Input-pin; (12)Interrupt-on-Pin Change; (13)Individual Programmable Weak Pull-ups; (14)Programmable Code Protection; (15)12 I/O Pins with Individual Direction Control; (16)High Current Sink/Source for Direct LED Drive.
