Product Summary

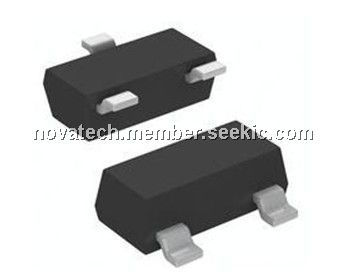

The IRLML2402 is a power MOSFET. Fifth generation HEXFETs from international recitifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design that the IRLML2402 is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRLML2402 maximum ratings: (1)ID@TA=25℃ Continuous drain current,VGS@4.5V: 1.2A; (2)ID@TA=70℃ Continuous drain current,VGS@4.5V: 0.95A; (3)IDM Pulsed drain current: 7.4A; (4)Power dissipation: 540mW; (5)Linear derating voltage: ±12V; (6)Peak diode recovery: 5.0V/ns; (7)Junction and storage temperature range: -55 to +150℃.

Features

IRLML2402 features: (1)Generation V Technology; (2)Ultra low on-resistance; (3)N-channel MOSFET; (4)SOT-23 footprint; (5)Low profile<1.1mm; (6)Available in tape and reel; (7)Fast switching.

Diagrams

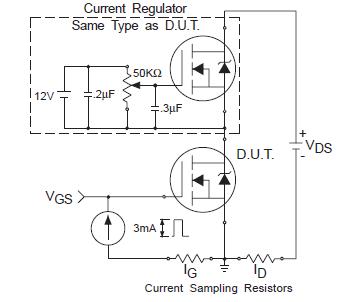

IRLML2402 circuit dragram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRLML2402
IRLML2402
Other

Data Sheet
Negotiable
IRLML2402GTRPBF
IRLML2402GTRPBF
International Rectifier
MOSFET MOSFT 20V 1.2A 250mOhm 2.6nC LogLvl
Data Sheet
0-1: $0.25
1-25: $0.14
25-100: $0.09
100-250: $0.08
IRLML2402TRPBF
IRLML2402TRPBF
International Rectifier
MOSFET MOSFT 20V 1.2A 250mOhm 2.6nC LogLvl
Data Sheet
0-1: $0.28
1-25: $0.16
25-100: $0.10
100-250: $0.09
IRLML2402TR
IRLML2402TR

MOSFET N-CH 20V 1.2A SOT-23
Data Sheet
Negotiable
