Product Summary

The LM431SCCMFX is a three terminal output adjustable regulator with thermal stability over operating temperature range. The output voltage can be set any value between VREF (approximately 2.5 volts) and 36 volts with two external resistors. The LM431SCCMFX is has a typical dynamic output impedance of 0.2 Active output circuit provides a sharp turn-on characteristic, making the device excellent replacement for Zener Diodes in many applications.

Parametrics

LM431SCCMFX absolute maximum ratings: (1)Cathode Voltage VKA 37 V; (2)Cathode current Range (Continuous) IKA -100 ~ +150 mA; (3)Reference Input Current Range IREF 0.05 ~ +10 mA; (4)Power Dissipation, PD: 560mW; (5)Junction Temperature TJ: 150℃; (6)Operating Temperature Range TOPR: -25 ~ +85℃; (7)Storage Temperature Range TSTG: -65 ~ +150℃.

Features

LM431SCCMFX features: (1)Programmable Output Voltage to 36 Volts; (2)Low Dynamic Output Impedance 0.20 Typical; (3)Sink Current Capability of 1.0 to 100mA; (4)Equivalent Full-Range Temperature Coefficient of 50ppm/℃ Typical; (5)Temperature Compensated for Operation Over Full Rated Operating Temperature Range; (6)Low Output Noise Voltage; (7)Fast Turn-on Response.

Diagrams

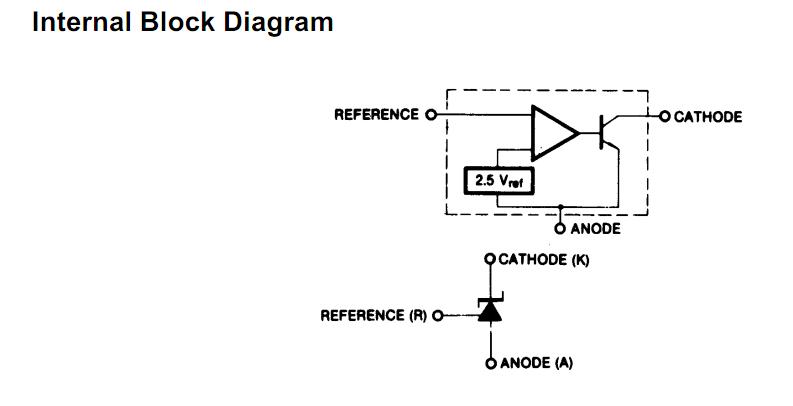

LM431SCCMFX block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

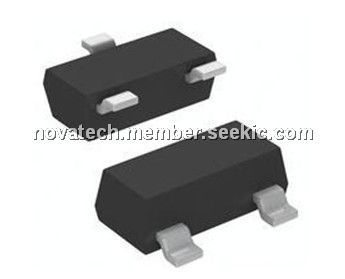

LM431SCCMFX
LM431SCCMFX
Fairchild Semiconductor
Voltage & Current References Shunt Regulator 2.5V Programmable
Data Sheet
0-1: $0.30
1-25: $0.22
25-100: $0.13
100-250: $0.09
