Product Summary
The LMV721IDBVR is a low-power, high-speed comparator with internal hysteresis. The device operating voltage ranges is from 2.7V to 5V with push/pull rail-to-rail output. It achieves a 7ns propagation delay while consuming only 1.1mA of supply current at 5V. The applications of the LMV721IDBVR include: (1)Portable and battery-powered systems; (2)Scanners; (3)Set top boxes; (4)High speed differential line receiver; (5)Window comparators; (6)Zero-crossing detectors; (7)High-speed sampling circuits.
Parametrics
LMV721IDBVR absolute maxing ratings: (1)ESD Tolerance Machine Body: 150V; Human Model Body: 2000V; (2)Differential Input Voltage: ±Supply Voltage; (3)Supply Voltage (V+ - V-): 5.5V; (4)Soldering Information Infrared or Convection (20 sec): 235℃; (5)Wave Soldering (10 sec) 260℃ (lead temp) ; (6)Voltage at Input/Output pins: (V+) + 0.4V (V-) - 0.4V; (7)Current at Input Pin: ±10mA.
Features
LMV721IDBVR features: (1)Propagation delay 7ns; (2)Low supply current 1.1mA; (3)Input common mode voltage range extends 200mv below ground; (4)Ideal for 2.7V and 5V single supply applications; (5)Internal hysteresis ensures clean switching; (6)Fast rise and fall time 1.3ns; (7)Available in space-saving packages: 5-pin SC70-5 and SOT23-5.

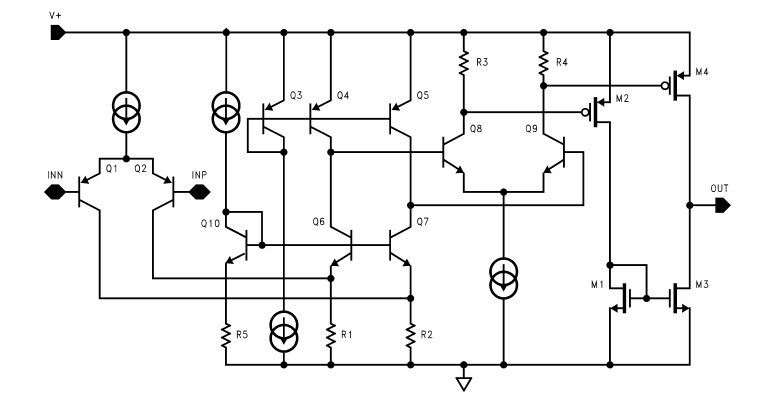

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMV721IDBVR |
Texas Instruments |
Operational Amplifiers - Op Amps 10-MHz L-N L-V L-P |
Data Sheet |
|
|
||||||||||||
|
LMV721IDBVRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps 10-MHz L-N L-V L-P |
Data Sheet |
|
|
||||||||||||
