Product Summary
The MAX1719EUT+T is a switched-capacitor voltage inverter. High efficiency, small external components, and logiccontrolled shutdown make the device ideal for both battery-powered and board-level voltage conversion applications. The ultra-small MAX1719EUT+T monolithic, CMOS charge-pump inverter accepts input voltages ranging from +1.5V to +5.5V. The MAX1719EUT+T operates at 125kHz. High efficiency, small external components, and logiccontrolled shutdown make these devices ideal for both battery-powered and board-level voltage conversion applications.
Parametrics
MAX1719EUT+T absolute maximum ratings: (1)IN to GND:-0.3V to +6V; (2)OUT to GND:-6V to +0.3V; (3)C1+, SHDN, SHDN to GND:-0.3V to (VIN + 0.3V); (4)C1- to GND:(VOUT - 0.3V) to +0.3V; (5)OUT Output Current:100mA; (6)OUT Short Circuit to GND:Indefinite; (7)Continuous Power Dissipation (TA = +70℃) 6-Pin SOT23 (derate 8.7mW/℃ above +70℃):696mW; (8)Operating Temperature Range:-40℃ to +85℃; (9)Junction Temperature:+150℃; (10)Storage Temperature Range:-65℃ to +150℃; (11)Lead Temperature (soldering, 10sec):+300℃.
Features
MAX1719EUT+T features: (1)1nA Logic-Controlled Shutdown; (2)6-Pin SOT23 Package; (3)99.9% Voltage Conversion Efficiency; (4)50μA Quiescent Current (MAX1719/MAX1720); (5)+1.5V to +5.5V Input Voltage Range; (6)25mA Output Current; (7)Requires Only Two 1μF Capacitors.

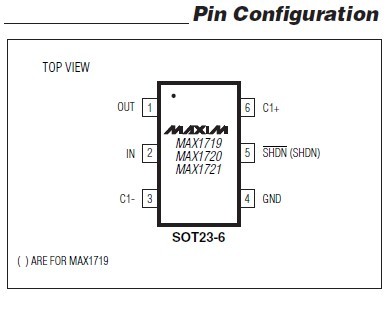

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX1719EUT+T |
Maxim Integrated Products |
Charge Pumps Switched-Cap Voltage Inverter w/Shutdown |
Data Sheet |
|
|
|||||||||||||
