Product Summary
The MAX1836EUT33-T is a high-efficiency step-down converter. It provides a preset 3.3V or 5V output voltage from supply voltages as high as 24V. The MAX1836EUT33-T is suitable for 9V battery systems, notebook computers, distributed power systems, backup supplies, 4mA to 20mA loop power supplies, industrial control supplies and handheld devices. Its package is SOT23-6.
Parametrics
MAX1836EUT33-T absolute maximum ratings: (1)LX to GND: -2V to (VIN + 0.3V); (2)OUT, FB to GND: -0.3V to +6V; (3)Operating Temperature Range: -40℃ to +85℃; (4)Junction Temperature: +150℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature (soldering, 10s): +300℃.
Features
MAX1836EUT33-T features: (1)4.5V to 24V Input Voltage Range; (2)Preset 3.3V or 5V Output; (3)Adjustable Output from 1.25V to VIN; (4)Output Currents Up to 125mA; (5)Efficiency Over 90%; (6)12μA Quiescent Current; (7)3μA Shutdown Current; (8)100% Maximum Duty Cycle for Low Dropout; (9)Small 6-Pin SOT23 and TDFN Packages.

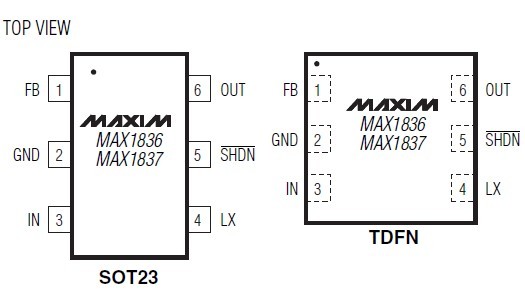

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX1836EUT33-T |
Maxim Integrated Products |
DC/DC Switching Converters |
Data Sheet |
Negotiable |
|
||||||||||||
