Product Summary
The MAX4250EUK-TACCI is a Single-Supply, Low-Noise, Low-Distortion, Rail-to-Rail Op Amp. The applications of the MAX4250EUK-TACCI are Portable/Battery-Powered Equipment, Medical Instrumentation, ADC Buffers, Digital Scales, Strain Gauges, Sensor Amplifiers, Portable Communications Devices.
Parametrics
MAX4250EUK-TACCI absolute maximum ratings: (1)Power-Supply Voltage (VDD to VSS): +6.0V to -0.3V; (2)Analog Input Voltage (IN_+, IN_-): (VDD + 0.3V)to (VSS - 0.3V); (3)SHDN Input Voltage: +6.0V to (VSS - 0.3V); (4)Output Short-Circuit Duration to Either Supply: Continuous; (5)Continuous Power Dissipation (TA = +70°C): 571mW; (6)Operating Temperature Range: -40°C to +85°C; (7)Junction Temperature: +150°C; (8)Storage Temperature Range: -65°C to +160°C; (9)Lead Temperature (soldering, 10sec): 300°C.
Features
MAX4250EUK-TACCI features: (1)Low Input Voltage Noise Density: 7.9nV/Hz; (2)Low Input Current Noise Density: 0.5fA/Hz; (3)Low Distortion: 0.0002% THD (1kΩ load); (4)400μA Quiescent Supply Current per Amplifier; (5)Single-Supply Operation from +2.4V to +5.5V; (6)Input Common-Mode Voltage Range Includes Ground; (7)Outputs Swing within 8mV of Rails with a 10kΩ Load; (8)3MHz GBW Product, Unity-Gain Stable.

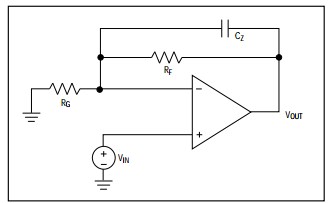

Diagrams
