MAX6710KUT+T

MAX6710KUT+T, precision quad voltage microprocessor (uP) supervisory circuit, SOT-23, 1V, 140ms, 35uA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 1000 :	0.05 / Piece
10000 ~ 50000 :	0.01 / Piece

PartNumber:: MAX6710KUT+T

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 50000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Jolin's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-04

From Other Seller

Part Number:MAX6710KUT+T
US $0.01 - 0.05
Quantity:

piece

Product Summary

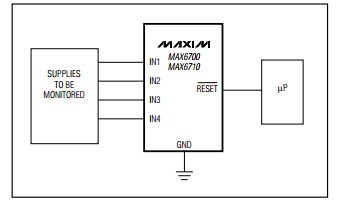

The MAX6710KUT+T precision quad voltage microprocessor (uP) supervisory circuit monitors up to four system-supply voltages and assert a single reset if any supply voltage drops below its preset threshold. The applications of the MAX6710KUT+T are Telecommunications, High-End Printers, Desktop and Notebook Computers, Data Storage Equipment, Networking Equipment, Industrial Equipment, Set-Top Boxes, Servers/Workstations.

Parametrics

MAX6710KUT+T absolute maximum ratings: (1)VCC, IN_, RESET to GND: -0.3V to +6V; (2)Continuous RESET Current: 20mA; (3)Continuous Power Dissipation: 695.7mW; (4)Operating Temperature Range: -40°C to +85°C; (5)Storage Temperature Range: -65°C to +150°C; (6)Junction Temperature: 150°C; (7)Lead Temperature (soldering, 10s): 300°C.

Features

MAX6710KUT+T features: (1)Monitor Up to Four Power-Supply Voltages; (2)Precision Factory-Set Reset Threshold Options for 5.0V, 3.3V, 3.0V, 2.5V, and 1.8V Supplies; (3)Adjustable Voltage Threshold Monitors Down to 0.62V with 1.5% Accuracy; (4)Low 35μA Supply Current; (5)Open-Drain RESET Output with 10uA Internal Pullup; (6)140ms (min)Reset Timeout Period (MAX6710); (7)RESET Valid to IN1 = 1V or IN2 = 1V; (8)Immune to Short Monitored Supply Transients; (9)Guaranteed from -40°C to +85°C; (10)Small 6-Pin SOT23 Package.
