Product Summary

The MAX825TEUK+T is a microprocessor supervisory circuit. The MAX825TEUK+T combines reset output, watchdog, and manual-reset input functions in a 5-pin SOT23-5 package. The MAX825TEUK+T significantly improves system reliability and accuracy compared to separate ICs or discrete components. The MAX825TEUK+T is specifically designed to ignore fast transients on VCC. The applications of the device include Battery-Powered Computers and Controllers, Embedded Controllers, Intelligent Instruments, Automotive Systems, Critical μP Monitoring and Portable/Battery-Powered Equipment.

Parametrics

MAX825TEUK+T absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)All Other Pins: -0.3V to (VCC + 0.3V); (3)Input Current, All Pins Except RESET and RESET: 20mA; (4)Output Current, RESET, RESET: 20mA; (5)Rate of Rise, VCC: 100V/μs; (6)Continuous Power Dissipation: 571mW; (7)Operating Temperature Range: -40 to +85℃; (8)Storage Temperature Range: -65 to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX825TEUK+T features: (1)Precision Monitoring of +3V, +3.3V, and +5V Power Supplies; (2)Operating Current: 3μA; (3)Fully Specified Over Temperature; (4)140ms Min Power-On Reset; (5)Guaranteed RESET Valid to VCC = 1V; (6)Power-Supply Transient Immunity; (7)Watchdog Timer with 1.6sec Timeout; (8)Manual-Reset Input; (9)No External Components.

Diagrams

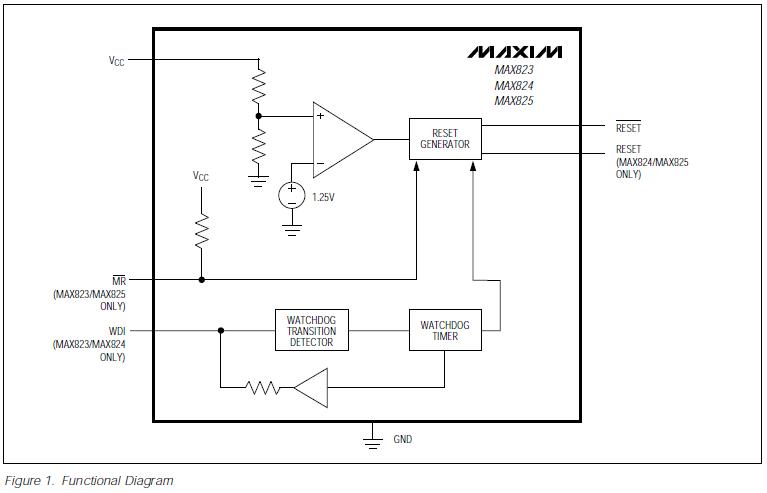

MAX825TEUK+T block diagram
