Product Summary
The MAX8867EUK29+T is a low-noise, low-dropout linear regulator operates from a 2.5V to 6.5V input and deliver up to 150mA. Typical output noise for these devices is just 30μVRMS, and typical dropout is only 165mV at 150mA. The output voltage is preset to voltages in the range of 2.5V to 5.0V, in 100mV increments. The MAX8867EUK29+T is pin-compatible with the MAX8863, except for the BP pin. The applications of the MAX8867EUK29+T include Cellular Telephones Modems, Cordless Telephones Hand-Held Instruments, PCS Telephones, Palmtop Computers, PCMCIA Cards, Electronic Planners.
Parametrics
MAX8867EUK29+T absolute maximum ratings: (1)IN to GND: -7V to +7V; (2)Output Short-Circuit Duration: Infinite; (3)SHDN to GND: -7V to +7V; (4)SHDN to IN: -7V to +0.3V; (5)OUT, BP to GND: -0.3V to (VIN + 0.3V); (6)Continuous Power Dissipation (TA = +70℃); (7)SOT23-5 (derate 7.1mW/℃ above +70℃): 571mW; (8)Operating Temperature Range: -40℃ to +85℃; (9)Junction Temperature: +150℃; (10)θJB: 140℃/W; (11)Storage Temperature Range: -65℃ to +160℃; (12)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX8867EUK29+T features: (1)Low Output Noise: 30μVRMS; (2)Low 55mV Dropout at 50mA Output (165mV at 150mA output); (3)Low 85μA No-Load Supply Current; (4)Low 100μA Operating Supply Current (even in dropout); (5)Thermal-Overload and Short-Circuit Protection; (6)Reverse Battery Protection; (7)Output Current Limit; (8)Preset Output Voltages (±1.4% accuracy); (9)10nA Logic-Controlled Shutdown.

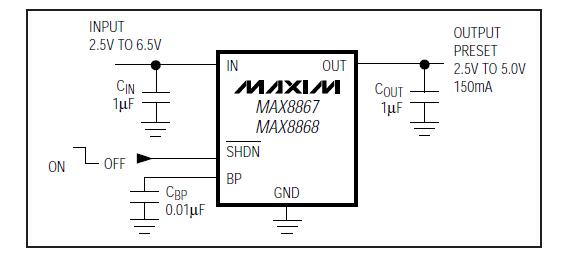

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX8867EUK29+T |
Maxim Integrated Products |
Low Dropout (LDO) Regulators 150mA Linear Regulator |
Data Sheet |
|
|
|||||||||||||
