Product Summary
The MC74HC1G32DFT2 is a high speed CMOS 2-input OR gate fabricated with silicon gate CMOS technology. The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output.
Parametrics
MC74HC1G32DFT2 absolute maximum ratings: (1)DC Supply Voltage: -0.5 to 7.0 V; (2)VIN DC Input Voltage: -0.5 to VCC +0.5 V; (3)VOUT DC Output Voltage: -0.5 to VCC+ 0.5 V; (4)IIK DC Input Diode Current: ±20 mA; (5)IOK DC Output Diode Current: ±20 mA; (6)IOUT DC Output Sink Current: ±12.5 mA; (7)ICC DC Supply Current per Supply Pin: ±25 mA; (8)TSTG Storage Temperature Range: -65 to 150°C; (9)TL Lead Temperature, 1 mm from Case for 10 Seconds: 260°C; (10)TJ Junction Temperature Under Bias: 150°C.
Features
MC74HC1G32DFT2 features: (1)High Speed: tPD = 7 ns (Typ)at VCC = 5 V; (2)Low Power Dissipation: ICC = 1 μA (Max)at TA = 25°C; (3)High Noise Immunity; (4)Balanced Propagation Delays (tpLH = tpHL); (5)Symmetrical Output Impedance (IOH = IOL = 2 mA); (6)Chip Complexity: FET = 44.

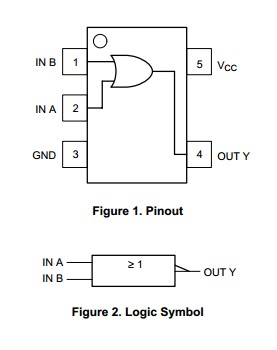

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC74HC1G32DFT2 |
ON Semiconductor |
IC GATE OR SGL 2INPUT SOT353 |
Data Sheet |
|
|
||||||||||||
 |
MC74HC1G32DFT2G |
ON Semiconductor |
Gates (AND / NAND / OR / NOR) LOG CMOS GATE OR 2INPUT |
Data Sheet |
|
|
||||||||||||
