Product Summary
The MIC2920A-5.0 is a bulletproof, efficient voltage regulator with very low dropout voltage (typically 40mV at light loads and 370mV at 250mA), and very low quiescent current (140mA typical). The quiescent current of the MIC2920A-5.0 increases only slightly in dropout, prolonging battery life. Key features include protection against reversed battery, fold-back current limiting, and automotive load dump protection (60V positive transient). The MIC2920A-5.0 is available in several configurations. The device is a fixed regulator offering a logic compatible ON/OFF (shutdown) input and an error flag output. This flag may also be used as a power-on reset signal. The applications of the MIC2920A-5.0 are: (1)Battery powered equipment; (2)Cellular telephones; (3)Laptop, notebook, and palmtop computers; (4)PCMCIA VCC and VPP regulation/switching; (5)Bar code scanners; (6)Automotive electronics; (7)SMPS post regulators; (8)Voltage reference; (9)High efficiency linear power supplies.
Parametrics
MIC2920A-5.0 absolute maximum ratings: (1)8-Pin SOIC qJA : Note 1; (2)Input Supply Voltage : -20V to +60V; (3)Operating Input Supply Voltage : 2V to 26V; (4)Adjust Input Voltage (Notes 9 and 10): -1.5V to +26V; (5)Shutdown Input Voltage : -0.3V to +30V; (6)Error Comparator Output Voltage : -0.3V to +30V.
Features
MIC2920A-5.0 features: (1)High output voltage accuracy; (2)Guaranteed 400mA output; (3)Low quiescent current; (4)Low dropout voltage; (5)Extremely tight load and line regulation; (6)Very low temperature coefficient; (7)Current and thermal limiting; (8)Input withstands -20V reverse battery and 60V positive transients; (9)Error flag warns of output dropout; (10)Logic-controlled electronic shutdown.

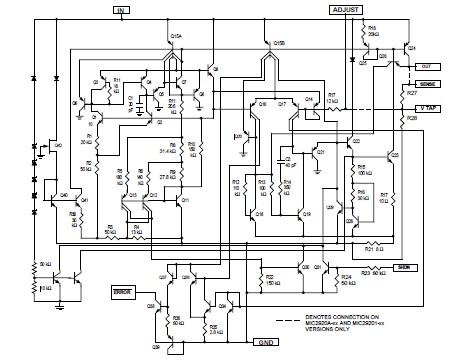

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MIC2920A-5.0BS |
IC REG LDO 5V .4A SOT223 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
MIC2920A-5.0BS TR |
IC REG LDO 5V .4A SOT223 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
MIC2920A-5.0BT |
IC REG LDO 5V .4A TO-220-3 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
MIC2920A-5.0WS TR |
IC REG LDO 5V .4A SOT223 |
Data Sheet |
|
|
||||||||||||||||||||
MIC2920A-5.0WS |
IC REG LDO 5V .4A SOT-223 |
Data Sheet |
|
|
||||||||||||||||||||
MIC2920A-5.0WT |
IC REG LDO 5V .4A TO-220-3 |
Data Sheet |
|
|
