Product Summary

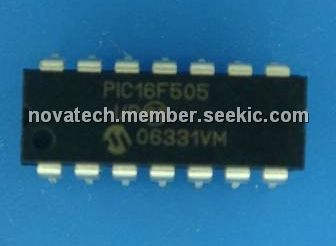

The PIC16F505-I/P device from Microchip Technology is a low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle (200 μs) except for program branches, which take two cycles. The PIC16F505-I/P delivers performance an order of magnitude higher than their competitors in the same price category. It is equipped with special features that reduce system cost and power requirements. The PIC16F505-I/P device is available in the cost-effective Flash programmable version, which is suitable for production in any volume.

Parametrics

PIC16F505-I/P absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: 0 to +6.5V; (4)Voltage on MCLR with respect to VSS: 0 to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Max. current out of VSS pin : 200 mA; (8)Max. current into VDD pin: 150 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD) : ±20 mA; (11)Max. output current sunk by any I/O pin: 25 mA; (12)Max. output current sourced by any I/O pin : 25 mA; (13)Max. output current sourced by I/O port : 75 mA; (14)Max. output current sunk by I/O port: 75 mA.

Features

PIC16F505-I/P features: (1)Only 33 single-word instructions to learn; (2)All single-cycle instructions except for program branches, which are two-cycle; (3)12-bit wide instructions; (4)2-level deep hardware stack; (5)Direct, Indirect and Relative Addressing modes for data and instructions; (6)8-bit wide data path; (7)8 Special Function Hardware registers; (8)Operating speed: DC – 20 MHz clock input (PIC16F505 only); DC – 200 ns instruction cycle (PIC16F505 only); DC – 4 MHz clock input; DC – 1000 ns instruction cycle; (9)12 I/O pins: 11 I/O pins with individual direction control; 1 input only pin; High current sink/source for direct LED drive; Wake-on-change; Weak pull-ups; (10)8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler.

Diagrams

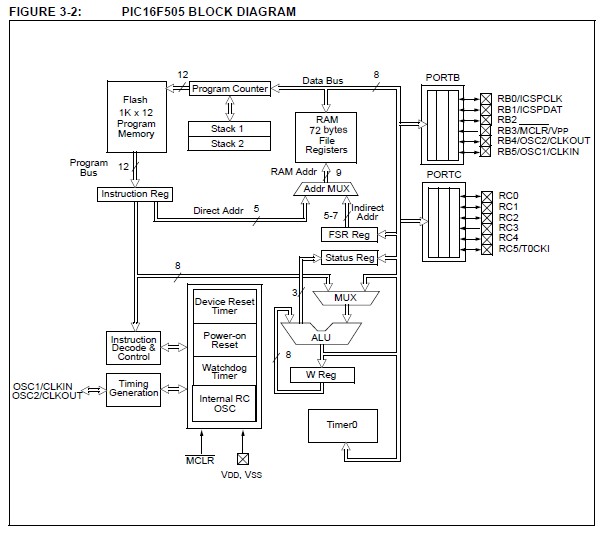

PIC16F505-I/P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F505-I/P
PIC16F505-I/P

Microchip Technology

8-bit Microcontrollers (MCU) 2 KB 72 RAM 12 I/O

Data Sheet

0-1: $0.60
1-10: $0.48
10-25: $0.44
25-100: $0.40
