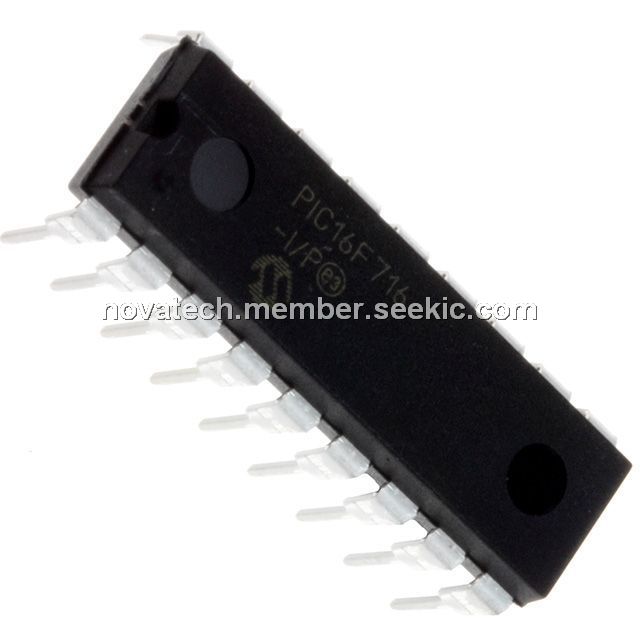

PIC16F716-I/P4AP

8-bit Flash-based Microcontroller, -0.3V to +7.5V, 250 mA, 1.0W, High-performance, PDIP18

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: PIC16F716-I/P4AP

Brand:: Microchip Technology - Microchip | Pack: PDIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jolin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-15

From Other Seller

Part Number:PIC16F716-I/P4AP
US $0.01 - 100.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

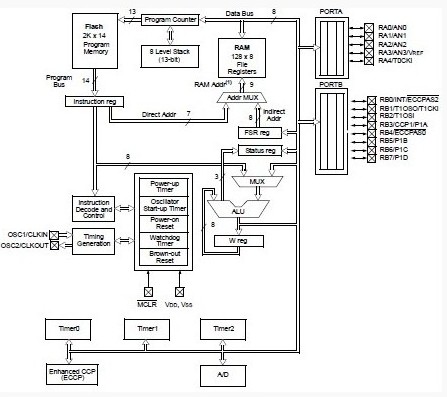

The PIC16F716-I/P4AP is an 8-bit Flash-based Microcontroller with A/D Converter and Enhanced Capture/Compare/PWM.

Parametrics

PIC16F716-I/P4AP absolute maximum ratings: (1)Ambient temperature under bias: -55℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4): -0.3V to (VDD +0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Voltage on RA4 with respect to Vss: 0V to +8.5V; (7)Total power dissipation (PDIP and SOIC): 1.0W; (8)Total power dissipation (SSOP): 0.65W; (9)Maximum current out of VSS pin: 300 mA; (10)Maximum current into VDD pin: 250 mA; (11)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (12)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (13)Maximum output current sunk by any I/O pin: 25 mA.

Features

PIC16F716-I/P4AP features: (1)High-performance RISC CPU; (2)Only 35 single-word instructions to learn All single-cycle instructions except for program branches which are two-cycle; (3)Operating speed: DC - 20 MHz clock input; DC - 200 ns instruction cycle; (4)Interrupt capability(up to 7 internal/external interrupt sources); (5)8-level deep hardware stack; (6)Direct, Indirect and Relative Addressing modes.
