Product Summary
The PIC16F872-I/SO is a 28-pin, 8-bit CMOS flash microcontroller.
Parametrics
PIC16F872-I/SO absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS: 0 to +13.25V; (6)Voltage on RA4 with respect to Vss: 0 to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin : 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA.
Features
PIC16F872-I/SO features: (1)High-performance RISC CPU; (2)Only 35 single word instructions to learn; (3)All single cycle instructions except for program branches which are two cycle; (4)Interrupt capability (up to 10 sources); (5)Eight level deep hardware stack; (6)Direct, indirect and relative addressing modes; (7)Power-on Reset (POR); (8)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (9)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (10)Programmable code-protection; (11)Power saving SLEEP mode; (12)Selectable oscillator options; (13)Low-power, high-speed CMOS FLASH/EEPROM technology.

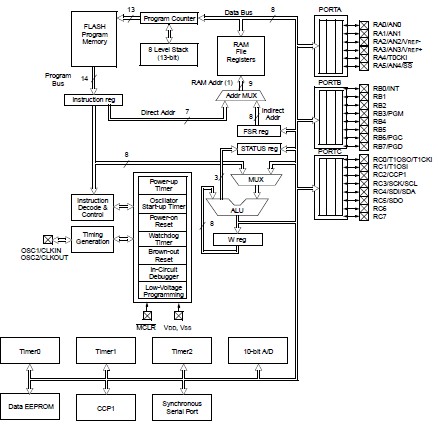

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC16F872-I/SO |
Microchip Technology |
8-bit Microcontrollers (MCU) 3.5KB 128 RAM 22 I/O |
Data Sheet |
|
|
||||||||||||
|
PIC16F872-I/SOG |
Microchip Technology |
8-bit Microcontrollers (MCU) 3.5KB 128 RAM 22 I/O Lead Free Package |
Data Sheet |
