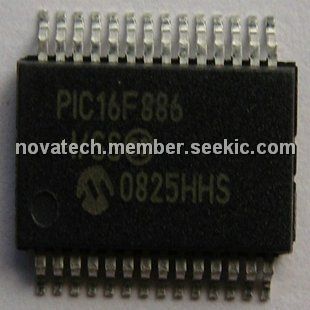

PIC16F886-I/SS

20MHz, 8KX14, 28SSOP, MCU, 8-Bit, PIC16, 14KB, 5V, Enhanced Flash-Based, CMOS Microcontroller, nanoWatt Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: PIC16F886-I/SS

Brand:: Microchip Technology - Microchip | Pack: SSOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jolin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-15

From Other Seller

Part Number:PIC16F886-I/SS
US $0.01 - 100.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC16F886-I/SS is an Enhanced Flash-Based 8-Bit CMOS Microcontroller with nanoWatt Technology.

Parametrics

PIC16F886-I/SS absolute maximum ratings: (1)Ambient temperature under bias:-40℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS:-0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss:-0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.3V to (VDD + 0.3V); (6)Total power dissipation:800 mW; (7)Maximum current out of VSS pin:95 mA; (8)Maximum current into VDD pin:95 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD):± 20 mA; (11)Maximum output current sunk by any I/O pin:25 mA; (12)Maximum output current sourced by any I/O pin:25 mA; (13)Maximum current sunk by all ports (combined):90 mA; (14)Maximum current sourced by all ports (combined):90 mA.

Features

PIC16F886-I/SS features: (1)High current source/sink for direct LED drive; (2)Interrupt-on-Change pin; (3)Individually programmable weak pull-ups; (4)Ultra Low-Power Wake-up (ULPWU); (5)Two analog comparators; (6)Programmable on-chip voltage reference (CVREF) module (% of VDD); (7)Fixed voltage reference (0.6V); (8)Comparator inputs and outputs externally accessible; (9)SR Latch mode; (10)External Timer1 Gate (count enable); (11)A/D Converter:10-bit resolution and 11/14 channels; (12)Timer0: 8-bit Timer/Counter with 8-bit ; (13)Programmable Prescaler; (14)16-bit Capture, max. resolution 12.5 ns; (15)Compare, max. resolution 200 ns; (16)10-bit PWM with 1, 2 or 4 output channels, programmable “dead time”, max. frequency 20 kHz; (17)PWM output steering control; (18)16-bit Capture, max. resolution 12.5 ns; (19)16-bit Compare, max. resolution 200 ns; (20)10-bit PWM, max. frequency 20 kHz.
