Product Summary
The VJ2225A102JXEAT is a surface mount multilayer ceramic chip capacitor for commercial applications.
Parametrics
VJ2225A102JXEAT absolute maximum ratings: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Capacitance Range: 1.0 pF to 0.056 μF; (3)Voltage Rating: 10 Vdc to 1000 Vdc; (4)Temperature Coefficient of Capacitance (TCC): 0 ± 30 ppm/℃ from - 55 ℃ to + 125 ℃; (5)Dissipation Factor (DF): 0.1 % maximum at 1.0 Vrms and 1 kHz for values > 1000 pF; 0.1 % maximum at 1.0 Vrms and 1 MHz for values ≤ 1000 pF; (6)Aging Rate: 0 % maximum per decade.
Features
VJ2225A102JXEAT features: (1)C0G is an ultra-stable dielectric offering a Temperature Coefficient of Capacitance (TCC) of 0 ±30 ppm/℃; (2)Low Dissipation Factor (DF); (3)Ideal for critical timing and tuning applications; (4)Ideal for snubber and surge suppression applications; (5)Protective surface coating of high voltage capacitors maybe required to prevent surface arcing.; (6)Surface mount, precious metal technology, wet build process.

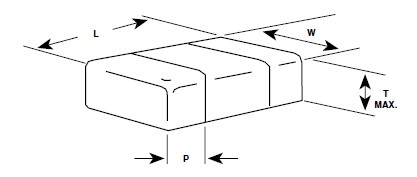

Diagrams
 |
