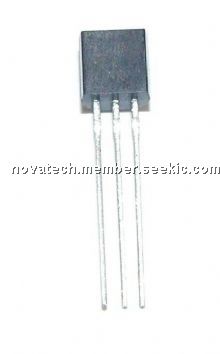

Product Summary
The 78L05 is a kind of three terminal positive voltage regulator. The device is an inexpensive, vise-to-use device suitable for a multitude of applications that require a regulated supply of up to 100 mA. The 78L05 features internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the 78L05 in many applications.The voltages available allow the 78L05 to be used in logic systems, instrumentation, HiFi, and other solid state electronic equipment.
Parametrics
78L05 absolute maximum ratings: (1)Input Voltage VI: VO = 5 V to 9 V: 30V; VO = 12 V to 15 V: 35V; (2)Output Current IO: 100 mA; (3)Maximum Power Dissipation PD: Case 4303.8-1 (SO-8) D Suffix: 500 mW; (4)Junction Temperature TJMAX: 150℃; (5)Operating Junction Temperature Range TOPR: -30 to +85℃; (6)Storage Temperature Range TSTG: -40 to +150℃.
Features
78L05 features: (1)High Output Current IO= 100 mA; (2)Fixed Output Voltage VO= 5 V, 6 V, 8 V, 12 V, 15 V; (3)Complementary Negative Regulators 79L00A Series; (4)Available in either ±5% (AC) Selection.

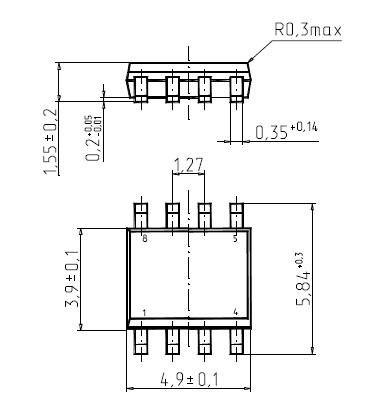

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 78L05 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
78L05AC |
Other |
|
Data Sheet |
Negotiable |
|
||||
