Product Summary
The AD5310BRTZ-REEL7 is is a single, 10-bit buffered voltage out DAC that operates from a single +2.7 V to +5.5 V supply consuming 115 mA at 3 V. It is suitable for portable battery powered instruments, digital gain and offset adjustment, programmable voltage and current sources and programmable attenuators.
Parametrics
AD5310BRTZ-REEL7 absolute maximum ratings: (1)VDD to GND: –0.3 V to +7 V; (2)Digital Input Voltage to GND:–0.3 V to VDD + 0.3 V; (3)VOUT to GND: –0.3 V to VDD + 0.3 V; (4)Operating Temperature Range; (5)Industrial (B Version): –40℃ to +105℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Junction Temperature (TJ Max): +150℃.
Features
AD5310BRTZ-REEL7 features: (1)Single 10-Bit DAC; (2)6-Lead SOT-23 and 8-Lead mSOIC Packages; (3)Micropower Operation: 140 mA @ 5 V; (4)Power-Down to 200 nA @ 5 V, 50 nA @ 3 V; (5)+2.7 V to +5.5 V Power Supply; (6)Guaranteed Monotonic by Design; (7)Reference Derived from Power Supply; (8)Power-On-Reset to Zero Volts; (9)Three Power-Down Functions; (10)Low Power Serial Interface with Schmitt-Triggered Inputs; (11)On-Chip Output Buffer Amplifier, Rail-to-Rail Operation.

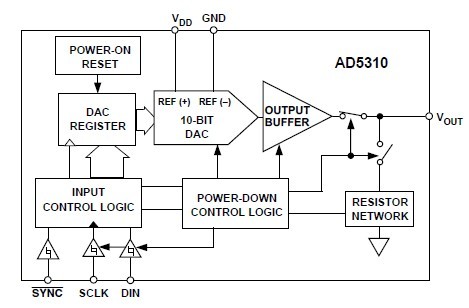

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD5310BRTZ-REEL7 |
IC DAC 10BIT R-R W/BUFF SOT23-6 |
Data Sheet |
|
|
||||||||||||||||||||
