Product Summary
The VJ1825Y223KXGAT is a surface mount multilayer ceramic chip capacitor for commercial applications.
Parametrics
VJ1825Y223KXGAT absolute maximum ratings: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Capacitance Range: 100 pF to 1.8 μF; (3)Voltage Rating: 10 Vdc to 1000 Vdc; (4)Temperature Coefficient of Capacitance (TCC): ± 15 % from - 55 ℃ to + 125 ℃, with 0 Vdc applied; (5)Dissipation Factor (DF): ≤ 25 V ratings: 3.5 % maximum at 1.0 Vrms and 1 kHz; (6)Aging Rate: 1 % maximum per decade.
Features
VJ1825Y223KXGAT features: (1)General purpose dielectric; (2)Excellent aging characteristics; (3)Ideal for decoupling and filtering; (4)Ideal for surge suppression and high voltage applications; (5)Wide range of case sizes, voltage ratings and capacitance values; (6)Protective surface coating of high voltage capacitors maybe required to prevent surface arcing; (7)Surface mount, precious metal technology, wet built process.

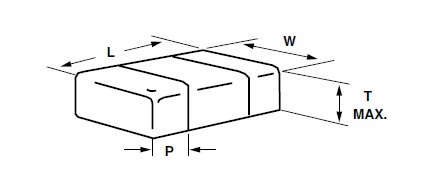

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VJ1825Y223KXGAT |
|
CAP CER 0.022UF 1KV 10% X7R 1825 |
Data Sheet |
|
|
||||||||||||||
