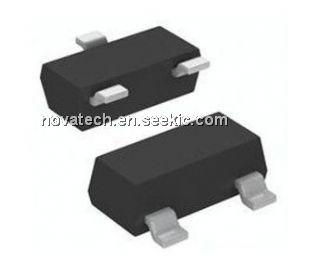

AT-32033-TR1

NPN bipolar transistor, SOT-143, 1.5V, 200mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 1000 :	0.05 / Piece
10000 ~ 100000 :	0.00 / Piece

PartNumber:: AT-32033-TR1

Brand:: Hewlett-Packard - HP | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 1000000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Jolin's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-04

From Other Seller

Part Number:AT-32033-TR1
US $0.00 - 0.05
Quantity:

piece

Product Summary

The AT-32033-TR1 is a high performance NPN bipolar transistor that has been optimized for maximum ft at low voltage operation, making them ideal for use in battery powered applications in wireless markets. The AT-32033-TR1 places the same die in the higher performance 4 lead SOT-143. Both packages are industry standard, and compatible with high volume surface mount assembly techniques.

Parametrics

AT-32033-TR1 absolute maximum ratings: (1)VEBO Emitter-Base Voltage: 1.5V; (2)VCBO Collector-Base Voltage: 11V; (3)VCEO Collector-Emitter Voltage: 5.5V; (4)IC Collector Current: 32mA; (5)PT Power Dissipation: 200mW; (6)Tj Junction Temperature: 150℃; (7)TSTG Storage Temperature: -65 to 150℃.

Features

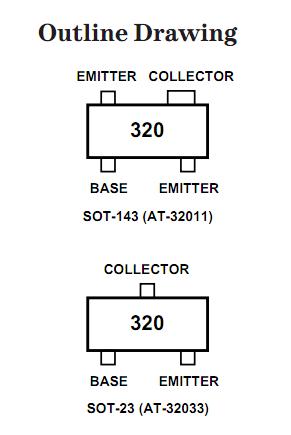

AT-32033-TR1 features: (1)High Performance Bipolar Transistor Optimized for Low Current, Low Voltage Operation; (2)900 MHz Performance; (3)Characterized for End-Of- Life Battery Use (2.7 V); (4)SOT-23 and SOT-143 SMT Plastic Packages; (5)Tape-And-Reel Packaging Option Available.
