Product Summary

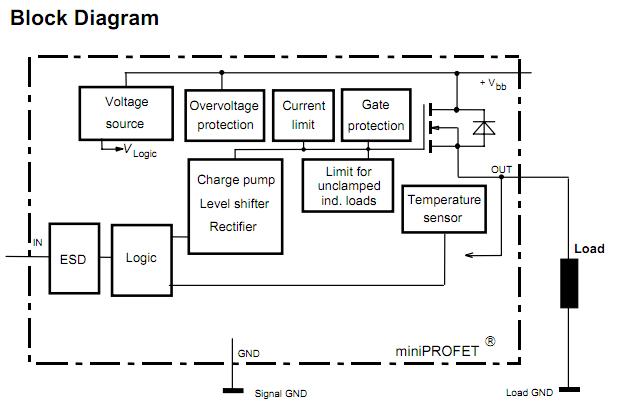

The BSP76 is an N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. The applications of the BSP76 include All types of resistive, inductive and capacitive loads, μC compatible power switch for 12 V and 24 V DC applications and Replaces electromechanical relays and discrete circuits.

Parametrics

BSP76 absolute maximum ratings: (1)Supply voltage, Vbb: 40 V; (2)Supply voltage for full short circuit protection, Vbb(SC): Vbb; (3)Continuous input voltage, VIN: -10 to +16V; (4)Load current (Short - circuit current, see page 5), IL: self limited; (5)Current through input pin (DC), IIN: ± 5 mA; (6)Operating temperature, Tj: -40 to +150℃; (7)Storage temperature, Tstg: -55 to +150℃; (8)Power dissipation, Ptot: 1.5 W; (9)Inductive load switch-off energy dissipation, EAS: 870 mJ; (10)Load dump protection, VLoaddump: 60V; (11)Electrostatic discharge voltage, VESD: ± 1kV.

Features

BSP76 features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown with restart; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection with external resistor; (8)CMOS compatible input; (9)Loss of GND and loss of Vbb protection; (10)ESD - Protection; (11)Very low standby current.
