Product Summary

The EKMM201VSN471MA20S is a large capacitance aluminum electrolytic capacitor.

Parametrics

EKMM201VSN471MA20S absolute maximum ratings: (1)Category Temperature Range: -25 to +105℃; (2)Rated Voltage Range: 160 to 450Vdc; (3)Capacitance Tolerance: ±20%; (4)Capacitance: 470 uF; (5)Rated Voltage :200 V; (6)Operating Temperature : -25 ℃ +105℃; (7)Life Time :2000-3000 Hours.

Features

EKMM201VSN471MA20S features: (1)Downsize, longer life, and high ripple version of KMH series; (2)Endurance with ripple current : 105C 2000 to 3000 hours; (3)Non solvent-proof type; (4)Pb-free design.

Diagrams

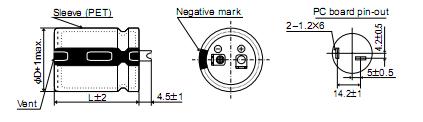

EKMM201VSN471MA20S package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EKMM201VSN471MA20S
EKMM201VSN471MA20S
United Chemi-Con
Aluminum Electrolytic Capacitors - Snap In 200volts 470uF 35x20
Data Sheet
0-195: $1.73
195-200: $1.64
200-500: $1.52
500-1000: $1.44
