Product Summary
The FAN2508S33X is a micropower low-dropout voltage regulator. It utilizes CMOS technology to offer a new level of cost-effective performance in GSM and TDMA cellular handsets, Laptop and Notebook portable computers, and other portable devices. The applications of the FAN2508S33X are (1)Cellular Phones and accessories; (2)PDAs; (3)Portable cameras and video recorders; (4)Laptop, notebook and palmtop computers.
Parametrics
FAN2508S33X absolute maximum ratings: (1)Power Supply Voltages, VIN (Measured to GND): 0 to 7 V; (2)Enable Input (EN) Applied voltage (Measured to GND): 0 to 7V; (3)ERR Output Applied voltage (Measured to GND): 0 to 7V; (4)Power Dissipation: Internally limited; (5)Temperature Junction: -65 to 150℃; (6)Lead Soldering (5 seconds): 260℃; (7)Storage -65 to 150℃; (8)Electrostatic Discharge: 4kV.
Features
FAN2508S33X features: (1)Ultra Low Power Consumption; (2)50 mV dropout voltage at 50 mA; (3)25 μA ground current at 50 mA; (4)Enable/Shutdown Control; (5)SOT23-5 package; (6)Thermal limiting; (7)300 mA peak current.

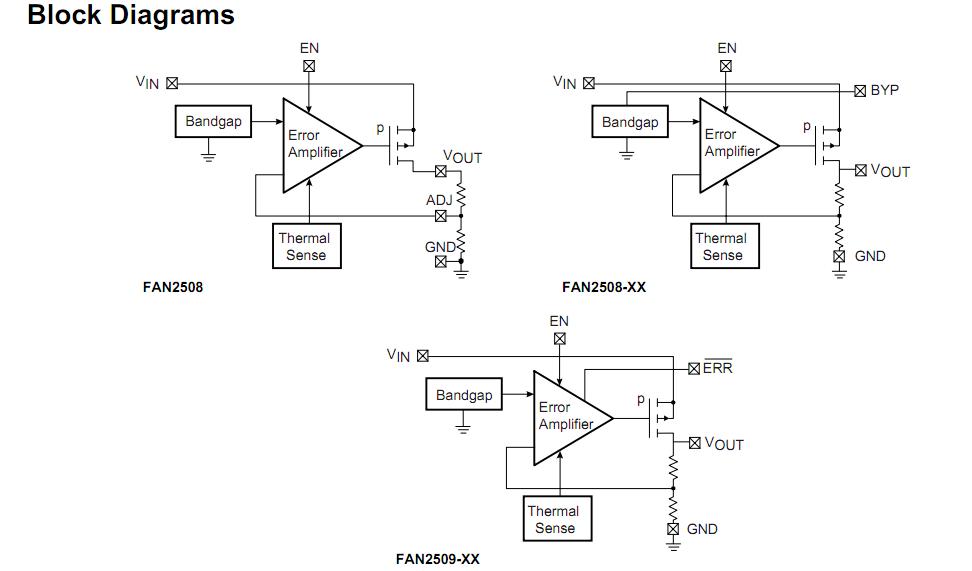

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FAN2508S33X |
Fairchild Semiconductor |
Low Dropout (LDO) Regulators LDO Voltage |
Data Sheet |
Negotiable |
|
||||||||||||
|
FAN2508S33X_Q |
Fairchild Semiconductor |
Low Dropout (LDO) Regulators LDO Voltage |
Data Sheet |
|
|
||||||||||||
