Product Summary
The FAN4040DIS325 is a precision shunt reference. It is ideal for space- and cost-sensitive applications. The FAN4040DIS325 is available in three output voltages (2.500V, 3.300V and 5.00V) and with four output voltage tolerances (0.1%, 0.2%, 0.5% and 1%). They also have excellent temperature coefficients, to 100ppm/℃ for the tighter tolerance grades. The FAN4040DIS325 has an extended operating current range, sinking as much as 25mA. The applications of the device are (1)Portable equipment; (2)Disk drives; (3)Instrumentation; (4)Audio equipment; (5)Data acquisition systems.
Parametrics
FAN4040DIS325 absolute maximum ratings: (1)Continuous cathode current, IK: -30 to 30 mA; (2)Storage Temperature Range: -65 to 150℃; (3)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
FAN4040DIS325 features: (1)Fixed 2.500V, 3.300V and 5.00V; (2)Tolerances to ±0.1% (25℃); (3)Low output noise; (4)Low temperature coefficient to 100ppm/℃; (5)Small package; (6)Extended operating current range; (7)Extended temperature range.

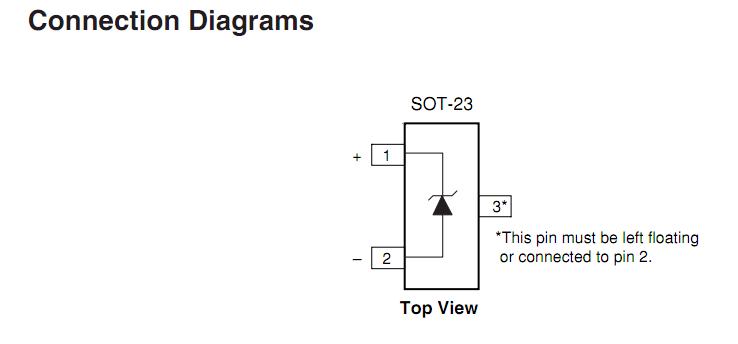

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FAN4040DIS325X |
Fairchild Semiconductor |
Voltage & Current References Shunt Volt Reference Precision Micropower |
Data Sheet |
Negotiable |
|
||||||||||||
