Product Summary

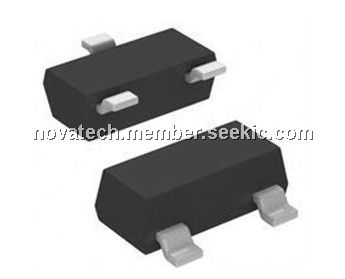

The LM4050CIM3X-10 is a precision micropower shunt voltage reference. It is ideal for space critical applications. It is suitable for portable, battery-powered equipment, data acquisition systems, instrumentation, process control, energy management, product testing, automotive and precision audio components. Its package is SOT23-3.
Parametrics
LM4050CIM3X-10 absolute maximum ratings: (1)Reverse Current: 20 mA; (2)Forward Current: 10 mA; (3)Power Dissipation (TA = 25℃), M3 Package: 280 mW; (4)Storage Temperature: -65℃ to +150℃; (5)Lead Temperature, M3 Package: Vapor phase (60 seconds): +215℃; Infrared (15 seconds): +220℃; (6)ESD Susceptibility: Human Body Model: 2 kV; Machine Model: 200V.
Features
LM4050CIM3X-10 features: (1)Small packages: SOT-23; (2)No output capacitor required; (3)Tolerates capacitive loads; (4)Fixed reverse breakdown voltages of 2.048V, 2.500V, 4.096V, 5.000V, 8.192V, and 10.000V.

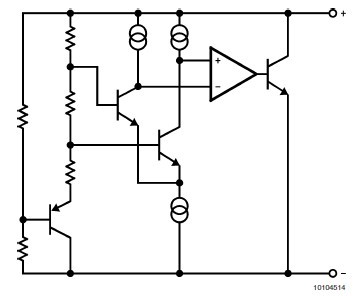

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4050CIM3X-10 |
|
IC VREF SHUNT PREC 10V SOT-23-3 |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
LM4030AMF-4.096/NOPB |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
|
LM4040A20IDCKRE4 |
Texas Instruments |
Voltage & Current References 2.048V Precision Mcrpwr Shunt .1% acc |
Data Sheet |
|
|
||||||||||||
|
LM4040A20IDCKR |
Texas Instruments |
Voltage & Current References 2.048V Precision Mcrpwr Shunt .1% acc |
Data Sheet |
|
|
||||||||||||
|
LM4030CMFX-2.5/NOPB |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
 |
LM4040 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
LM4040-2.5 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
